Description

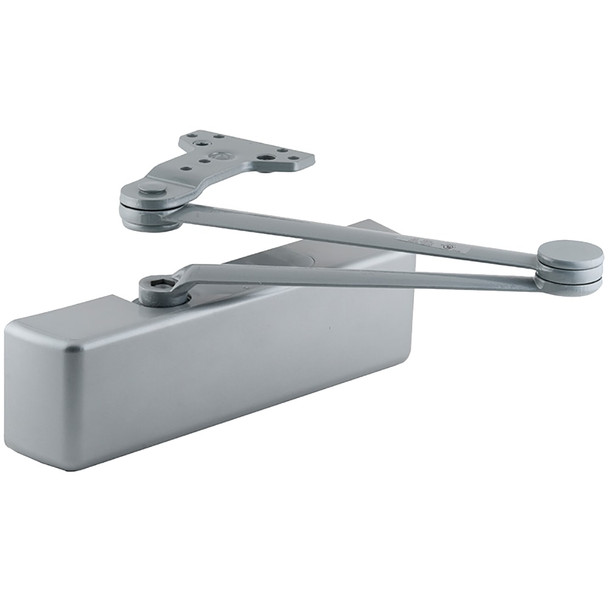

The LCN 4040XP-CUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. Built with a reinforced pinion, enhanced bearing capacity, and V-shield seals, it delivers 44% greater load capacity and extended seal life. This non-handed closer suits both interior and exterior applications with superior durability for demanding commercial settings.
The 4040XP-CUSH mounts on the hinge side, top jamb, or parallel arm configuration for either right- or left-swinging doors. It handles interior doors to 5'0" and exterior doors to 4'0" with easy power adjustment and fast installation. UL/cUL listed and ANSI A156.4 Grade 1 certified, it's available in standard or custom powder coat, optional plated finishes, and SRI primer for corrosive environments. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification guidance.
Specifications
- Bearing Load Capacity: 44% increase over standard models
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Seal Type: V-shield with 20% longer life
- Certification: UL, cUL, ANSI A156.4 Grade 1
- Non-Handed: Right or left swing
- Mount Options: Hinge side, top jamb, parallel arm
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Finish Options: Standard powder coat, optional custom powder coat, optional plated finish, optional SRI primer
