Description

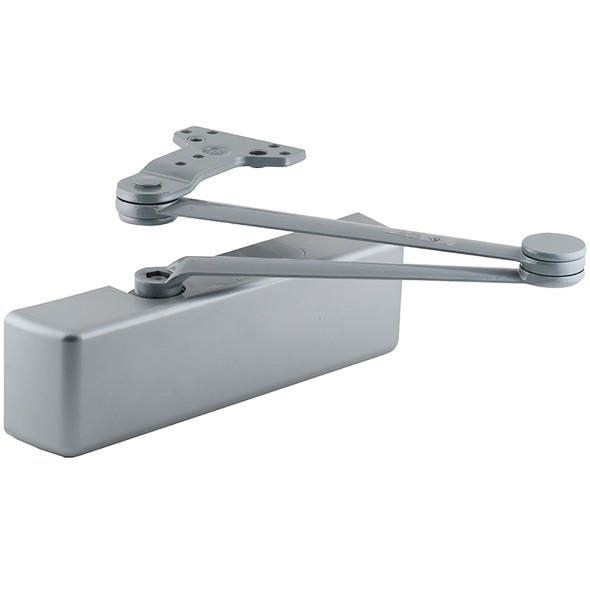

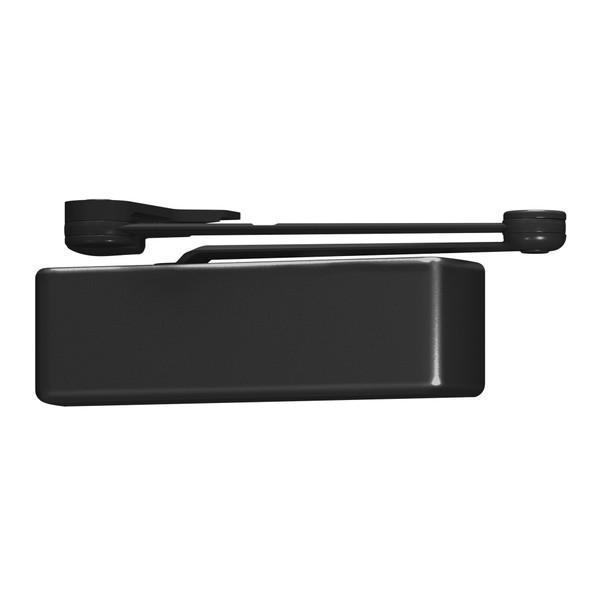

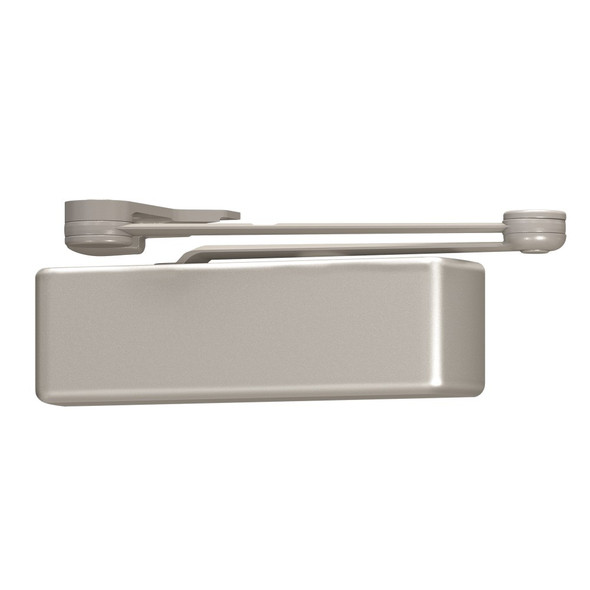

The LCN 4040XP is a heavy-duty surface-mounted door closer engineered for high-traffic institutional, commercial, and demanding applications. It features a 3/4" forged steel pinion with 44% increased bearing load capacity, V-shield seals with 20% extended life, and all-weather fluid technology. Ideal for facilities managers and contractors seeking maximum durability and minimal maintenance in institutional settings.
This non-handed closer adjusts for interior doors to 5' and exterior doors to 4', and mounts on hinge side, top jamb, or parallel arm configurations for either right or left swinging doors. LCN Fast Power Adjust enables quick, accurate field setup. All closers are UL and cUL listed to ANSI A156.4 Grade One. For sizing assistance, finish options (powder coat, plating, SRI primer for corrosive environments), or accessory compatibility, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 4040XP-SCUSH AL ST1595
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm
- Handed: Non-handed (fits right or left swing)
- Fluid Type: All-weather
- Sealing: V-shield with extended life
- Construction: Cast iron body, forged steel arm, double heat-treated pinion
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA Compatible: Yes
- Finish Options: Standard powder coat, optional plating, optional SRI primer
