Description

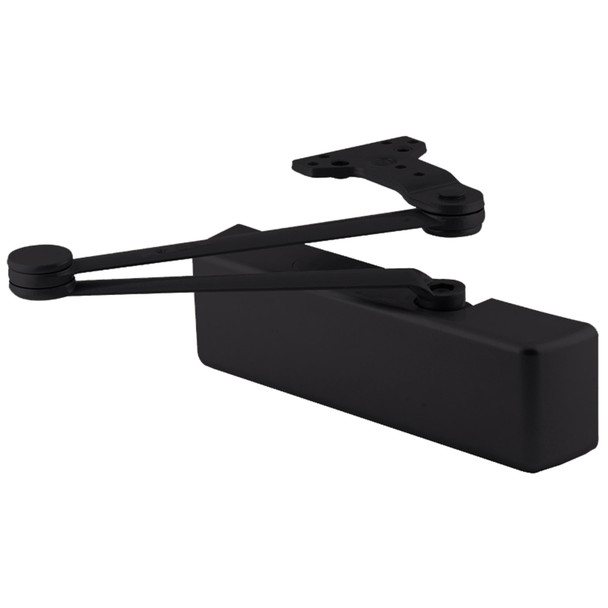

The LCN 4040XP-CUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and LCN's new V-shield seal with 20% longer life. Perfect for facilities demanding maximum durability and consistent performance.
This right-hand closer mounts on the hinge side, top jamb, or parallel arm and accommodates interior doors to 5'0" and exterior doors to 4'0". It is UL and cUL listed, ANSI A156.4 grade one certified, and compatible with all 4040 accessories. As an authorized LCN dealer, E.D. Locks offers expert support: contact sales@edlocks.com or call 1-877-207-6067 for installation guidance, finish options, or custom configurations.
Specifications
- Brand: LCN
- Model: 4040XP-CUSH RH
- Finish: Black
- Mounting: Hinge side, top jamb, or parallel arm
- Interior door capacity: Up to 5'0"
- Exterior door capacity: Up to 4'0"
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All weather
- Handed: Right-hand
- Certifications: UL, cUL listed; ANSI A156.4 grade one
- Features: V-shield seal, fast power adjust, fast accurate installation, non-handed cylinder
- Optional finishes: Custom powder coat, plated finish on cover/arm/fasteners, SRI primer for corrosive environments
