Description

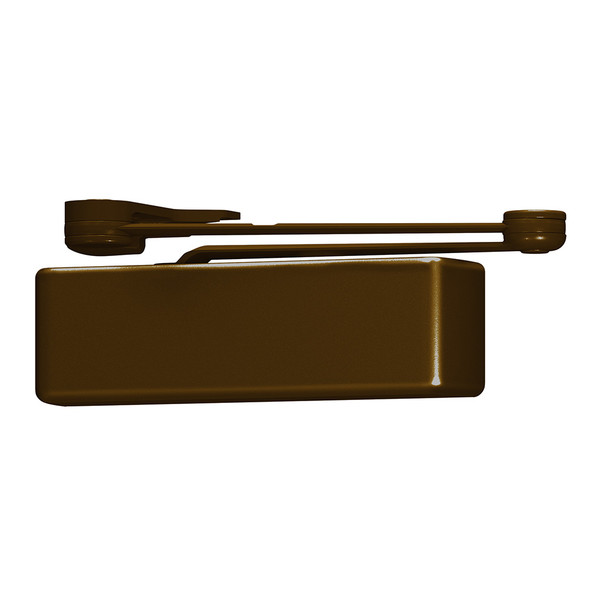

The LCN 4040XP-EDA is a heavy-duty surface-mounted door closer built for institutional facilities, hospitals, schools, and high-traffic commercial buildings. Its reinforced pinion, extra-wide bearings, and V-shield seals deliver 44% greater load capacity and longer service life than standard closers, solving durability challenges in demanding environments.
This non-handed closer fits interior doors up to 5 feet and exterior doors to 4 feet, and mounts on the hinge side, top jamb, or with optional parallel arm bracket. It's UL and cUL listed, ANSI A156.4 Grade 1 certified, and works with all 4040 accessories. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish options (powder coat, plated, or SRI primer), and free shipping on orders over $450.
Specifications
- 44% increased bearing load capacity
- 3/4" journal diameter pinion
- 5/8" bearing width
- V-shield seal with 20% longer life
- Cast iron and forged steel construction
- Double heat-treated steel pinion
- All-weather fluid
- Non-handed operation
- Fast Power Adjust and Fast Accurate Installation
- UL and cUL listed
- ANSI A156.4 Grade 1 certified
- Interior door capacity: up to 5'0"
- Exterior door capacity: up to 4'0"
- Mount options: hinge side, top jamb, or parallel arm
- Finish: Dark Bronze (optional custom powder coat, plated, or SRI primer available)
