Description

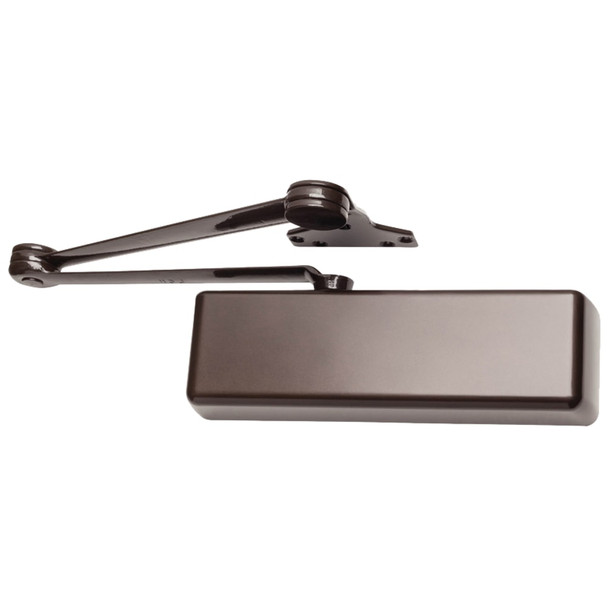

The LCN 4040XP-HEDA is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic facilities. It features a reinforced pinion with 3/4" journal diameter, 5/8" bearing width, and V-shield seals for 20% longer life. This non-handed closer delivers 44% increased bearing load capacity and all-weather performance in demanding applications.
This right-hand model installs on hinge-side, top jamb, or parallel arm configurations for interior doors up to 5'0" and exterior doors up to 4'0". UL and cUL listed, grade one certified to ANSI A156.4, it meets ADA requirements. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish options including optional plating or SRI primer, and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA RH
- Finish: Dark Bronze (DKBRZ)
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting: Hinge-side, top jamb, or parallel arm
- Handed: Right Hand (RH)
- Non-Handed: Yes
- Certification: UL, cUL, ANSI A156.4 Grade One
- Seal Type: V-shield with extended life
- Fluid: All-weather
- Adjustment: Fast Power Adjust
