Description

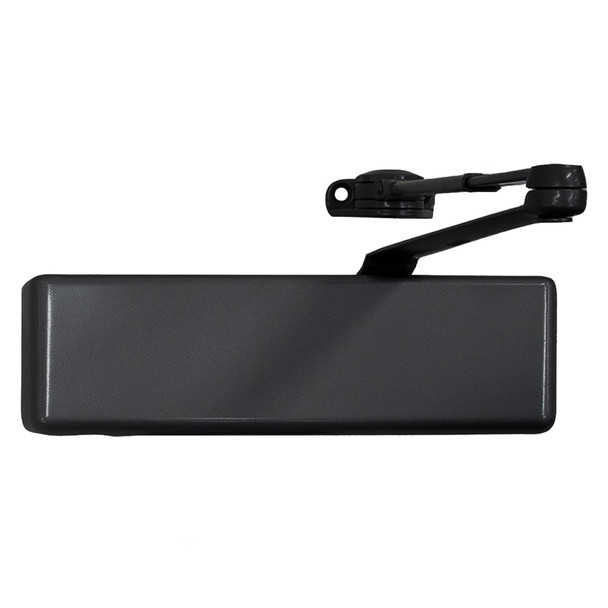

The LCN 4040XP-H 693 is a heavy duty surface mounted door closer engineered for institutional and high-traffic environments where durability is non-negotiable. It features a reinforced pinion with 3/4" journal diameter, 44% increased bearing load capacity, and an improved V-shield seal designed for 20% longer service life, making it ideal for schools, hospitals, and commercial facilities.
This non-handed closer mounts on the hinge side, top jamb, or with an optional parallel arm bracket, fitting interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed to ANSI A156.4 Grade One, it includes adjustable power and speed settings for precise installation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert assistance selecting finishes, accessories, and corrosion protection options.
Specifications
- Brand: LCN
- Model: 4040XP-H 693
- Type: Heavy Duty Surface Closer
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Door Size Range: Interior to 5'0", Exterior to 4'0"
- Mounting: Hinge side, top jamb, or parallel arm (optional bracket)
- Handed: Non-handed
- Material: Cast iron body, forged steel arm, double heat treated steel pinion
- Fluid: All weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Features: Fast Power Adjust, fast and accurate installation, V-shield seal, XP extra protection
- Finish Options: Standard or optional custom powder coat, optional plated finish on metal cover/arm/fasteners, optional SRI primer for corrosive environments
- Accessories: Compatible with all 4040 accessories
