Description

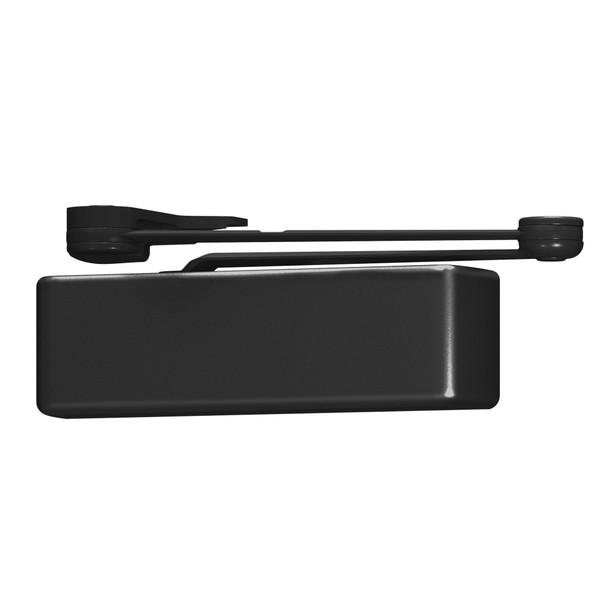

The LCN 4040XP-SCUSH 693 is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. It features a cast iron and forged steel construction with a double heat-treated steel pinion, delivering 44% increased bearing load capacity and the strongest pinion ever designed. The new V-shield seal extends seal life by 20%, making it ideal for demanding applications requiring durability and reliability.
This non-handed closer mounts on the hinge side, top jamb, or with a parallel arm bracket on right or left swinging doors. It adjusts for interior doors up to 5 feet and exterior doors up to 4 feet, and meets ADA requirements. UL and cUL listed, it's available with standard or custom powder coat finishes, optional plated hardware, or SRI primer for corrosive environments. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, finishing options, and fast accurate installation support.
Specifications
- Brand: LCN
- Model: 4040XP-SCUSH 693
- Type: Surface-Mounted Door Closer
- Bearing Load: 44% increased capacity
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Seal: V-shield with 20% longer life
- Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Handed: Non-handed
- Interior Door Adjustment: Up to 5 feet
- Exterior Door Adjustment: Up to 4 feet
- Mount Options: Hinge side, top jamb, or parallel arm bracket
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Finish Options: Standard powder coat, custom powder coat, optional plated finish, optional SRI primer
- Accessories: Compatible with all 4040 accessories
- Installation: Fast and accurate with LCN Fast Power Adjust
