Description

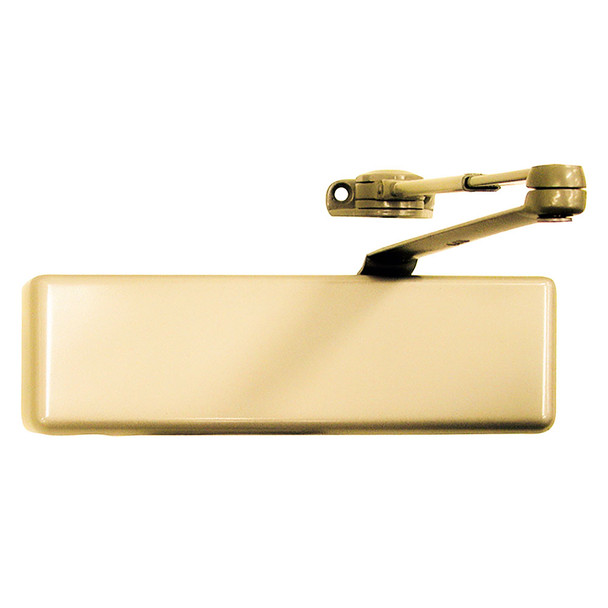

The LCN 4040XP-H is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. With 44% greater bearing load capacity, a 3/4" journal pinion, and V-shield seals rated 20% longer life, it delivers superior durability where standard closers fail. Ideal for schools, hospitals, and facilities demanding reliable performance.
This left-hand model fits interior doors to 5'0" and exterior doors to 4'0", and mounts on the hinge side, top jamb, or parallel arm. UL and cUL listed to ANSI A156.4 Grade One, it meets ADA requirements and works with all 4040 accessories. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish options including custom powder coat and corrosion-resistant primers, and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-H
- Handing: Left Hand (LH)
- Finish: US3
- Bearing Load Capacity: 44% increase over standard 4040
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Maximum: 5'0"
- Exterior Door Maximum: 4'0"
- Mount Options: Hinge side, top jamb, parallel arm
- Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Accessories Compatible: All 4040 accessories
