Description

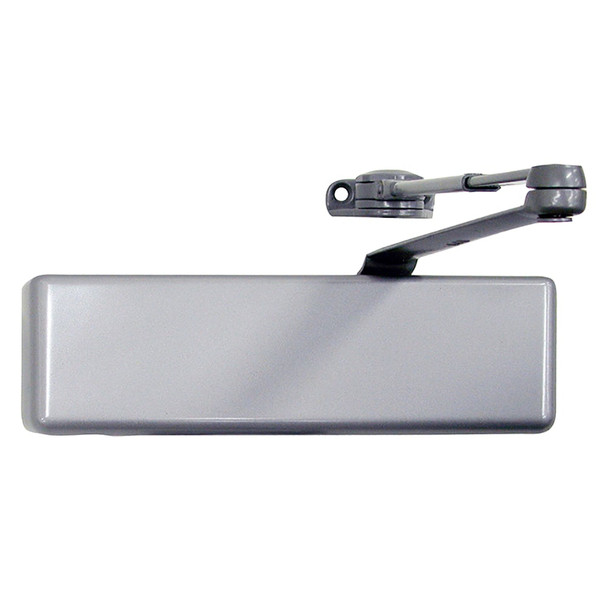

The LCN 4040XP-H is a heavy-duty institutional surface closer engineered for high-traffic doors in demanding environments. With 44% increased bearing load capacity, the strongest pinion ever made, and a V-shield seal with 20% longer life, it delivers superior durability and reliability where standard closers fall short.
This non-handed closer mounts on hinge side, top jamb, or parallel arm bracket, fitting interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed to ANSI A156.4 grade one, it works with all 4040 accessories and optional custom powder coat or plated finishes. Contact our experts at sales@edlocks.com or 1-877-207-6067 for fast, accurate installation guidance and to verify specifications for your specific door swing.
Specifications
- Brand: LCN
- Model: 4040XP-H RH
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Door Size Range: Interior to 5'0", Exterior to 4'0"
- Material: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Handed: Non-Handed
- Mount Options: Hinge Side, Top Jamb, Parallel Arm with PA Bracket
- Certifications: UL, cUL Listed, ANSI A156.4 Grade One
- Features: V-shield Seal, LCN Fast Power Adjust, Fast & Accurate Installation
- Finish Options: Standard Powder Coat, Optional Custom Powder Coat, Optional Plated Finish, Optional SRI Primer for Corrosive Conditions
