Description

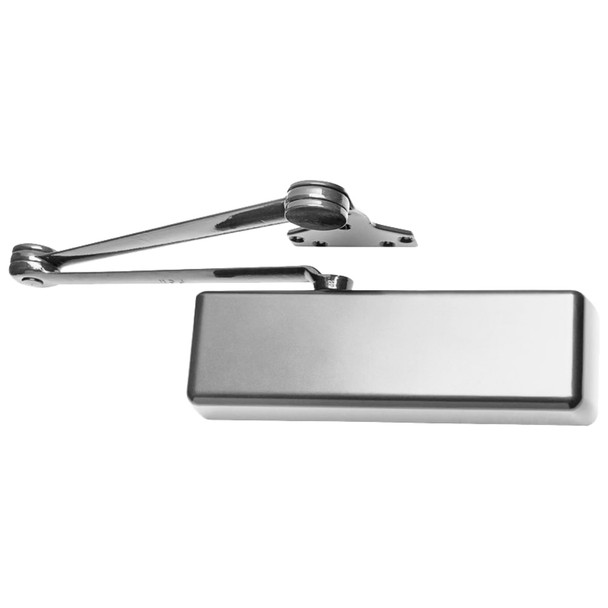

The LCN 4040XP-HEDA is a heavy-duty surface-mounted door closer engineered for high-traffic institutional environments. It solves problems in demanding applications with 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and LCN's Fast Power Adjust technology for quick, accurate installation on interior or exterior doors.
This non-handed closer mounts on hinge side, top jamb, or with optional parallel arm bracket on either swing direction. It's adjustable for interior doors to 5'0" and exterior doors to 4'0", and meets ADA requirements. As an authorized LCN dealer, E.D. Locks offers expert sizing and finish selection (standard or custom powder coat, optional plating, SRI primer for corrosive settings). Contact us at sales@edlocks.com or 1-877-207-6067 for technical guidance.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA RH AL MC
- Mounting: Hinge side, top jamb, or parallel arm (with PA bracket)
- Adjustment Range: Interior doors to 5'0", exterior doors to 4'0"
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal: V-shield with 20% longer life
- Fluid: All weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Finish Options: Standard powder coat, optional custom powder coat, optional plated finish, optional SRI primer
- ADA Compliant: Yes
