Description

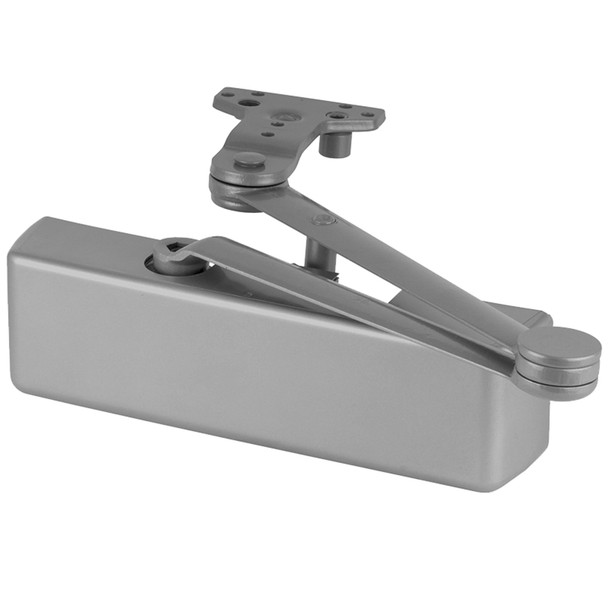

The LCN 4040XP-HCUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. Its 44% increased bearing load capacity, strongest pinion design, and V-shield seal with 20% longer life deliver superior durability and reliability where standard closers fall short.
This non-handed closer installs on hinge-side, top jamb, or parallel arm (with bracket) and adjusts to doors up to 5'0" interior or 4'0" exterior. It meets ADA requirements and is UL/cUL listed. As an authorized LCN dealer, E.D. Locks offers expert sizing, finish options (powder coat, plating, SRI primer for corrosive settings), and installation support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Mounting: Hinge-side, top jamb, or parallel arm compatible
- Features: Fast Power Adjust, fast and accurate installation, V-shield seal
- Finish Options: Standard powder coat, optional plated finish, optional SRI primer
