Description

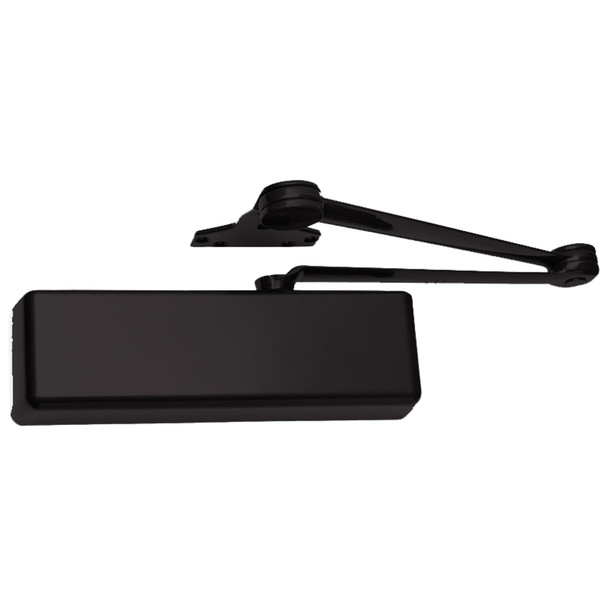

The LCN 4040XP-HEDA is a heavy-duty surface-mounted door closer engineered for high-traffic institutional environments. It features a 3/4" forged steel pinion with 44% increased bearing load capacity, V-shield seals rated 20% longer life, and all-weather fluid. Ideal for facilities demanding maximum durability and reliability.
This non-handed closer adjusts for interior doors up to 5'0" and exterior doors up to 4'0", mounting on hinge side, top jamb, or parallel arm configurations. UL and cUL listed to ANSI A156.4 Grade One. As an authorized LCN dealer, E.D. Locks offers expert guidance on sizing, finishes (standard powder coat, optional plating, or SRI primer for corrosive environments), and installation. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA
- Handing: Left Hand
- Finish: Black
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Fluid Type: All Weather
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Mount Options: Hinge side, top jamb, parallel arm
- Optional Finishes: Powder coat, plated metal cover/arm/fasteners, SRI primer
