Description

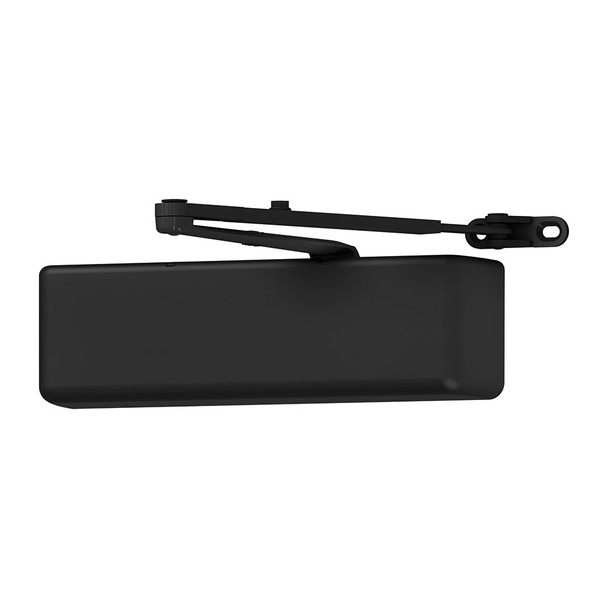

The LCN 4040XP-REG is a heavy-duty surface-mounted door closer built for institutional and high-traffic environments. Its reinforced design features a 3/4" journal pinion, 5/8" bearing width, and V-shield seals rated 20% longer-lasting than standard models. Ideal for facilities requiring maximum durability and minimal maintenance.
This non-handed closer adjusts for interior doors to 5'0" and exterior doors to 4'0", and mounts on the hinge side, top jamb, or with optional parallel arm bracket. UL/cUL listed and ANSI A156.4 Grade One certified, it accepts powder coat, plated, or SRI primer finishes. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for compatibility verification and expert installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-REG
- Handing: Left Hand
- Finish: Black
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Cylinder Type: Non-sized, adjustable
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Material: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid Type: All-weather
- Mount Options: Hinge side, top jamb, parallel arm (with PA bracket)
- Finish Options: Standard powder coat, optional plated or SRI primer
- Accessories: Compatible with all 4040 accessories
