Description

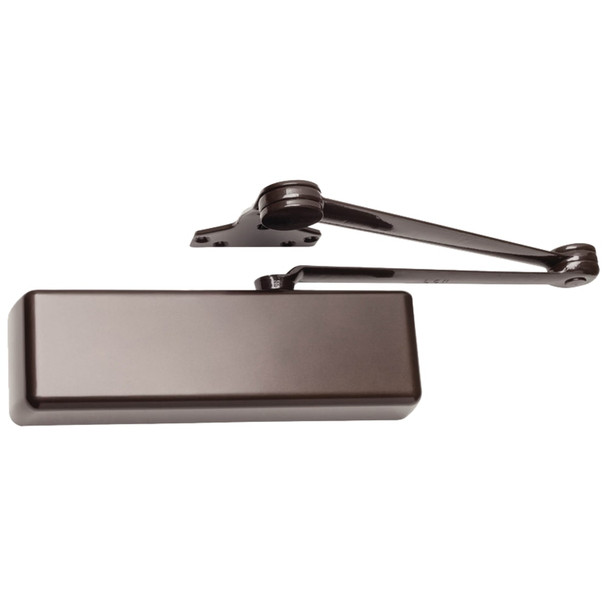

The LCN 4040XP-HEDA is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It delivers 44% increased bearing load capacity, a reinforced 3/4" pinion journal, and V-shield seals rated 20% longer life. Perfect for facilities requiring reliable automatic closing on interior and exterior doors up to 5 feet.
This closer mounts on the hinge side, top jamb, or with a parallel arm bracket on either left or right swinging doors. Fast Power Adjust technology enables quick, accurate installation. UL and cUL listed under ANSI A156.4 Grade 1. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, finish options, and compatibility with your door hardware.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA LH
- Finish: Dark Bronze
- Mounting: Hinge side, top jamb, or parallel arm compatible
- Hand: Left Hand
- Interior door capacity: up to 5 feet 0 inches
- Exterior door capacity: up to 4 feet 0 inches
- Pinion journal diameter: 3/4 inch
- Bearing width: 5/8 inch
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather, non-handed
- Listings: UL and cUL listed, ANSI A156.4 Grade 1
- Features: Fast Power Adjust, V-shield seals, optional custom powder coat and plated finishes available
