Description

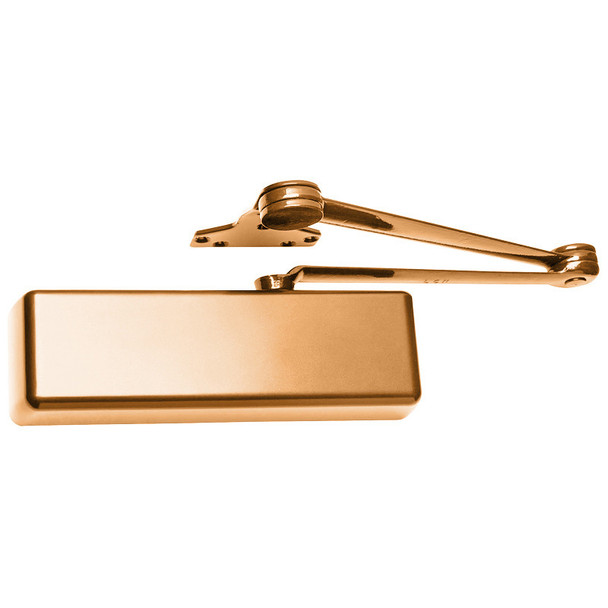

The LCN 4040XP-HEDA is a heavy-duty surface-mounted door closer engineered for institutional, commercial, and high-traffic environments. Built with cast iron, forged steel, and double heat-treated pinion, it delivers 44% greater bearing load capacity and the industry's strongest pinion design. The V-shield seal extends life by 20%, making it ideal for demanding applications where durability matters.
This left-hand closer mounts on hinge side, top jamb, or with optional parallel arm bracket, fitting interior doors to 5 feet and exterior doors to 4 feet. It is non-handed, adjustable, UL/cUL listed to ANSI A156.4 Grade One, and ADA compliant. As an authorized LCN dealer, E.D. Locks offers expert sizing and installation guidance. Contact sales@edlocks.com or call 1-877-207-6067 for free technical support.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA LH
- Finish: Light Bronze
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Interior Door Height: Up to 5 feet
- Exterior Door Height: Up to 4 feet
- Seal Technology: V-shield with 20% extended life
- Material: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid Type: All-weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Installation: Hinge side, top jamb, or parallel arm mount
- Accessories: Compatible with all 4040 accessories
- Finish Options: Standard or optional powder coat; optional plated finish; optional SRI primer for corrosive environments
