Description

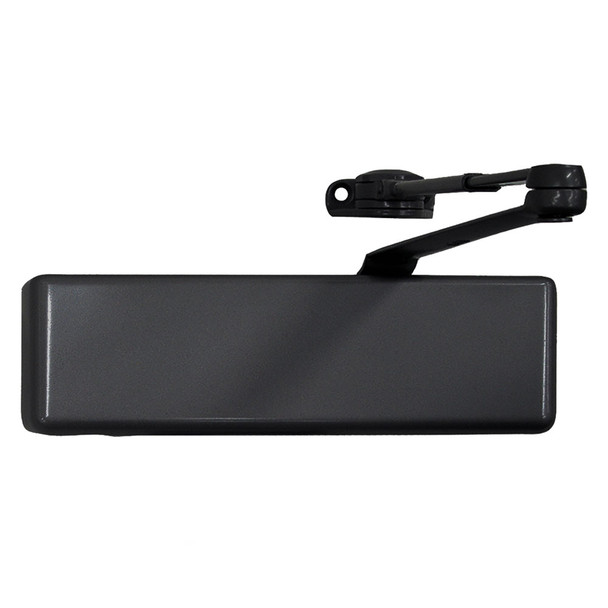

The LCN 4040XP-HLONG is a heavy-duty surface-mounted door closer built for institutional and high-traffic environments. With 44% increased bearing load capacity, the strongest pinion ever made, and LCN's new V-shield seal offering 20% longer life, this closer handles demanding applications where durability cannot be compromised. Cast iron construction with double heat-treated steel pinion ensures reliable performance.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configuration for right or left swinging doors. The non-sized cylinder adjusts for interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed to ANSI A156.4 Grade One, it meets ADA requirements and works with all 4040 accessories. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish options, SRI primer for corrosive environments, and installation support.
Specifications
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Material: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid Type: All Weather
- Non-Handed: Yes
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting Options: Hinge side, top jamb, or parallel arm
- UL/cUL Listed: Yes, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Finish: Black (standard); optional custom powder coat, plated, or SRI primer available
- Features: V-shield seal, Fast Power Adjust, Fast and Accurate Installation
