Description

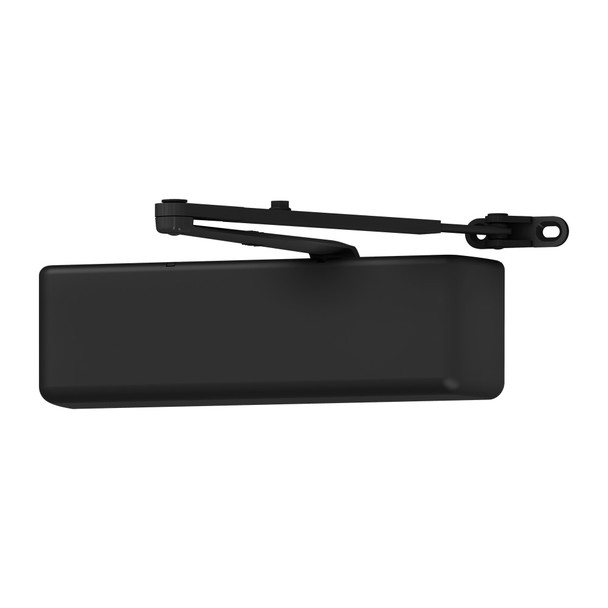

The LCN 4040XP-REG 693 is a heavy-duty surface-mounted door closer built for high-traffic institutional and commercial environments. It features a 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a reinforced V-shield seal for extended durability. Ideal for facilities managing constant foot traffic and demanding door cycles.
This non-handed closer mounts on the hinge side, top jamb, or parallel arm configuration for both interior and exterior doors up to 5 feet. It is UL and cUL listed, ANSI A156.4 Grade One certified, and adjustable for doors of varying sizes. Available finishes include standard or custom powder coat, optional plated hardware, and SRI primer for corrosive environments. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish selection, and installation guidance from an authorized dealer.
Specifications
- Brand: LCN
- Model: 4040XP-REG 693
- Type: Surface Closer
- Bearing Load Capacity: 44% increase over standard models
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Seal: V-shield with 20% longer life
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Handed: Non-handed
- Interior Door Range: Up to 5 feet 0 inches
- Exterior Door Range: Up to 4 feet 0 inches
- Mount Options: Hinge side, top jamb, or parallel arm with bracket
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Finish Options: Standard or custom powder coat, optional plated finish, optional SRI primer
- Compatibility: All 4040 accessories
- Features: Fast Power Adjust, fast and accurate installation, self-closing without hold-open
