Description

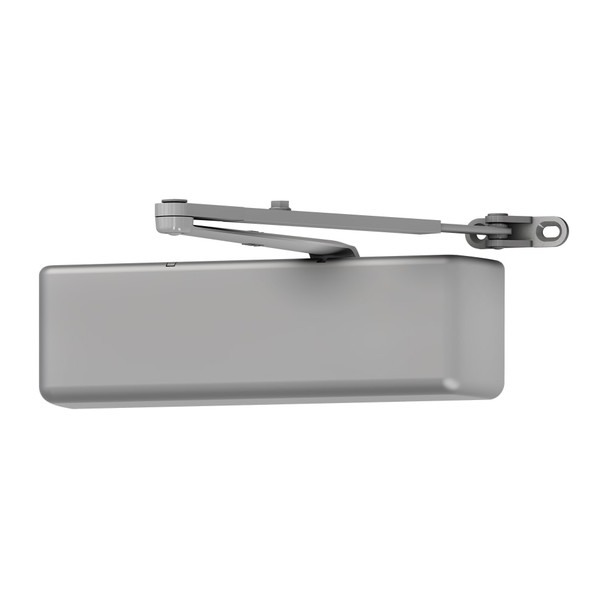

The LCN 4040XP-REG AL is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. It delivers 44% increased bearing load capacity, the strongest pinion design, and an advanced V-Shield seal for extended durability. Non-handed design works on either right or left swinging doors, interior or exterior.
This closer mounts on the hinge side, top jamb, or parallel arm configuration and adjusts to doors up to 5 feet wide. UL and cUL listed for ADA compliance. E.D. Locks carries LCN closers in stock and offers expert guidance on sizing, finish options, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for specifications and custom configurations.
Specifications
- Brand: LCN
- Model: 4040XP-REG AL
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Door Width Capacity: Up to 5'0" interior, 4'0" exterior
- Mounting: Hinge side, top jamb, or parallel arm
- Non-Handed: Yes
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- Seal Technology: V-Shield with 20% longer life
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather non-handed
- Installation: Fast and accurate power adjust
- Finish Options: Standard or optional custom powder coat, plated finish available on metal cover/arm/fasteners, optional SRI primer for corrosive environments
