Description

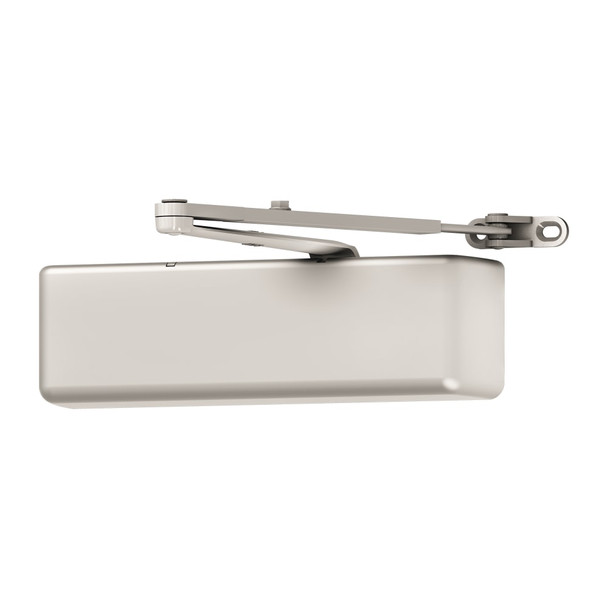

The LCN 4040XP-REG is a heavy-duty surface-mounted door closer built for institutional and high-traffic environments. It delivers 44% increased bearing load capacity, a 3/4" journal pinion, and a reinforced V-shield seal rated 20% longer life. Ideal for facilities demanding maximum durability and reliable performance.
This non-handed closer fits interior doors to 5'0" and exterior doors to 4'0", and mounts on hinge side, top jamb, or parallel arm configurations. It is UL and cUL listed, ANSI A156.4 Grade One certified, and compatible with all 4040 accessories. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish options, and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-REG RH
- Finish: US26 Satin Chrome
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: up to 5'0"
- Exterior Door Range: up to 4'0"
- Material: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid Type: All Weather
- Handed: Non-Handed
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Mount Options: Hinge side, top jamb, parallel arm with PA bracket
- Accessories: Compatible with all 4040 accessories
