Description

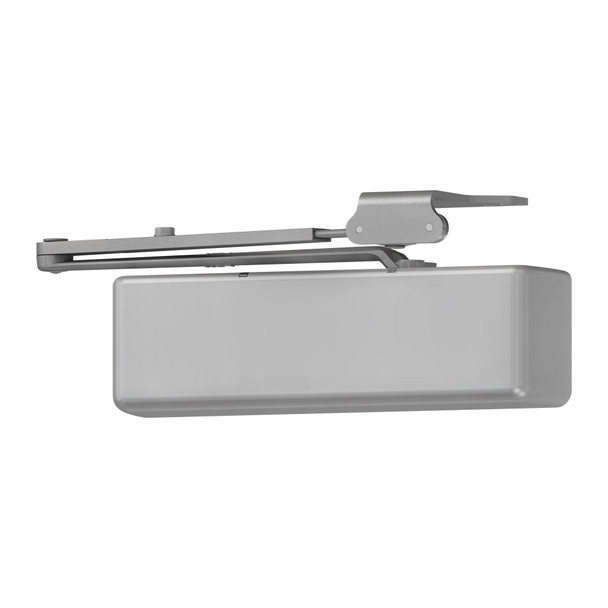

The LCN 4040XP-RW/PA is a heavy-duty, institutional-grade door closer engineered for high-traffic, demanding environments. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and the widest bearing at 5/8". The V-shield seal delivers 20% longer life, and XP protection handles real-world abuse in schools, hospitals, and commercial facilities.
This non-handed closer mounts on hinge side, top jamb, or parallel arm bracket on either right or left swinging doors, adjustable for interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed under ANSI A156.4 grade one. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish options (powder coat, plating, or SRI primer for corrosive conditions), installation, and compatibility with your project.
Specifications
- Brand: LCN
- Model: 4040XP-RW/PA LH
- Hand: Left Hand
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Interior Door Adjustment: Up to 5 feet 0 inches
- Exterior Door Adjustment: Up to 4 feet 0 inches
- Mounting Options: Hinge side, top jamb, or parallel arm with PA bracket
- Certifications: UL and cUL listed, ANSI A156.4 grade one
- Sealing Technology: V-shield seal with extended life
- Material Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid Type: All weather
- Installation: Fast and accurate with power adjust
- Finish Options: Standard or custom powder coat, optional plating, optional SRI primer
- Accessories Compatible: All 4040 accessories
