Description

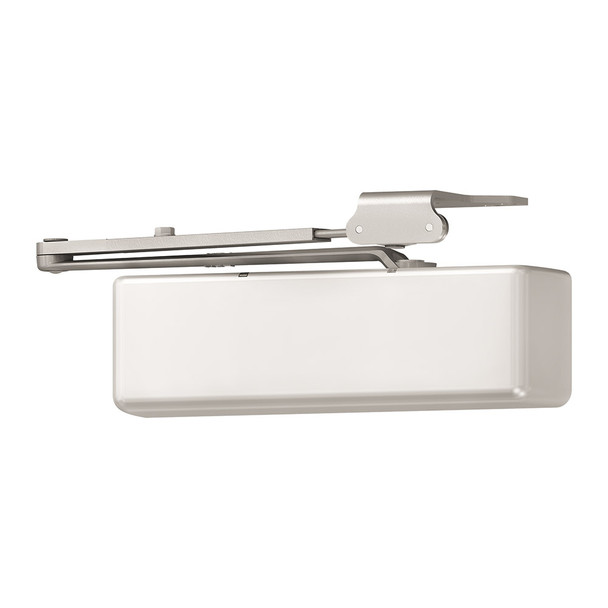

The LCN 4040XP is a heavy-duty surface-mounted door closer engineered for high-traffic institutional environments. It delivers 44% increased bearing load capacity, a reinforced 3/4" pinion journal, and an enhanced V-shield seal for superior durability and longevity in demanding applications.
This closer installs on hinge-side, top-jamb, or parallel arm configurations for both right and left swinging doors, with adjustability for interior doors to 5'0" and exterior doors to 4'0". As an authorized LCN dealer, E.D. Locks provides expert guidance on finish options, ADA compliance, and corrosive-environment protection. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: LCN
- Model: 4040XP-RW/PA LH US26
- Door Hand: Left Hand
- Finish Grade: US26
- Mount Type: Surface, Parallel Arm
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Adjustable Range: Interior to 5'0", Exterior to 4'0"
- Material: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid Type: All Weather Fluid
- Certification: UL and cUL Listed, ANSI A156.4 Grade One
- Features: Non-Handed, Fast Power Adjust, Fast Accurate Installation, V-shield Seal
- Accessories: Compatible with all 4040 accessories
- Optional: Custom powder coat, plated finish, SRI primer for corrosive conditions
