Description

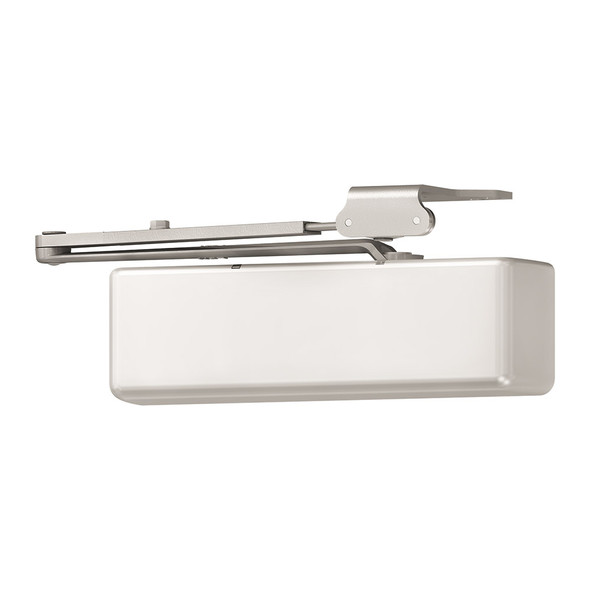

The LCN 4040XP-H is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic commercial environments. It solves premature wear and unreliable closing in demanding applications with 44% increased bearing load capacity, a stronger 3/4" journal pinion, and an enhanced V-shield seal rated 20% longer life. LCN's most durable closer, it features cast iron and double heat-treated steel construction for institutional reliability.
This left-hand, US26-finish closer mounts on the hinge side, top jamb, or with a parallel arm bracket on either swing. The non-sized cylinder adjusts for interior doors to 5'0" and exterior doors to 4'0", and it meets ADA requirements. UL and cUL listed under ANSI A156.4 grade one, it pairs with all 4040 accessories and accepts optional powder coat, plated, or SRI corrosion-resistant finishes. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and fast shipping.
Specifications
- Brand: LCN
- Model: 4040XP-H
- Handing: Left Hand (LH)
- Finish: US26
- Mounting: Hinge side, top jamb, or parallel arm bracket
- Interior door capacity: up to 5'0"
- Exterior door capacity: up to 4'0"
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All weather
- Features: V-shield seal, LCN Fast Power Adjust, fast and accurate installation
- Optional finishes: Custom powder coat, plated finish, SRI primer for corrosive environments
