Description

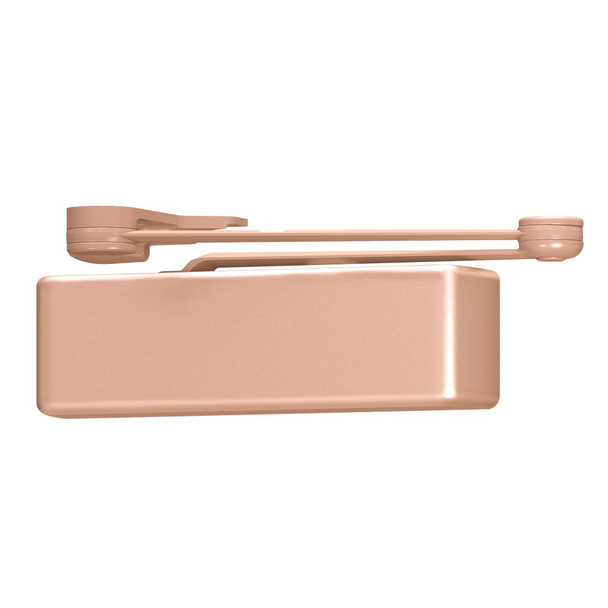

The LCN 4040XP-SCUSH is a heavy-duty surface-mounted door closer built for high-traffic institutional and commercial environments. Its reinforced design features a 3/4" pinion journal, 5/8" bearing, and strengthened pinion teeth that deliver 44% greater bearing load capacity than standard closers. The V-Shield seal extends seal life by 20%, making it ideal for facilities demanding maximum durability and reliability.
This right-hand closer mounts on hinge side, top jamb, or parallel arm configuration and accommodates interior doors to 5 feet and exterior doors to 4 feet. It is UL and cUL listed, ANSI A156.4 Grade One certified, and available with standard powder coat, optional plated finishes, or SRI primer for corrosive environments. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for sizing assistance and finish options.
Specifications
- Brand: LCN
- Model: 4040XP-SCUSH RH
- Finish: US10 (Satin Stainless Steel)
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Interior Door Capacity: Up to 5 feet
- Exterior Door Capacity: Up to 4 feet
- Certifications: UL, cUL Listed; ANSI A156.4 Grade One
- Seal: V-Shield (20% extended life)
- Material Construction: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Handed: Non-Handed (mounts either right or left)
- Mounting Options: Hinge side, top jamb, or parallel arm
