Description

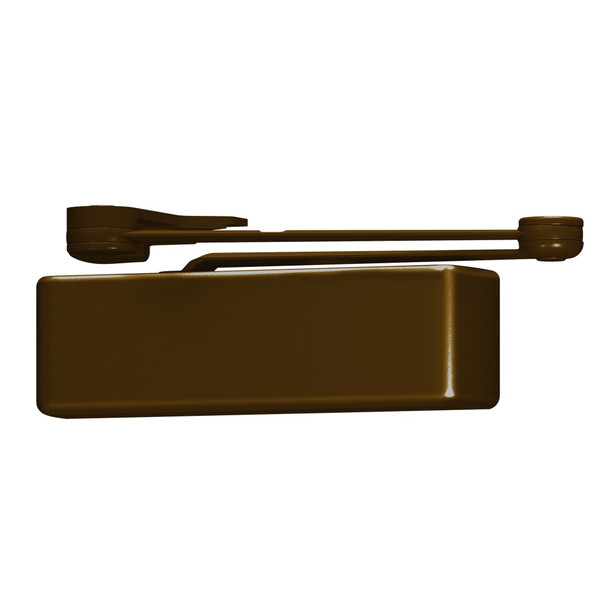

The LCN 4040XP-SCUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic applications. It features a reinforced pinion with 3/4" journal diameter, 44% increased bearing load capacity, and an enhanced V-shield seal for extended durability. This non-handed closer delivers reliable self-closing performance on interior and exterior doors.
The 4040XP accommodates door heights up to 5 feet (interior) and 4 feet (exterior), and mounts on the hinge side, top jamb, or with an optional parallel arm bracket. It's UL and cUL listed, ANSI A156.4 Grade 1 certified, and ADA compliant. For expert sizing, finish options, and installation guidance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 4040XP-SCUSH
- Finish: Dark Bronze
- Type: Surface-mounted door closer
- Load capacity: 44% increased bearing load vs. standard
- Pinion journal diameter: 3/4 inch
- Bearing width: 5/8 inch
- Seal: V-shield with 20% extended life
- Interior door height capacity: Up to 5 feet
- Exterior door height capacity: Up to 4 feet
- Handed: Non-handed
- Mounting options: Hinge side, top jamb, or parallel arm
- Fluid: All-weather
- Certifications: UL, cUL, ANSI A156.4 Grade 1
- ADA compliant: Yes
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Power adjustment: LCN Fast Power Adjust
- Installation: LCN Fast accurate installation
- Accessories compatible: All 4040 accessories
- Optional finishes: Custom powder coat, plated metal cover/arm/fasteners, SRI primer for corrosive environments
