Description

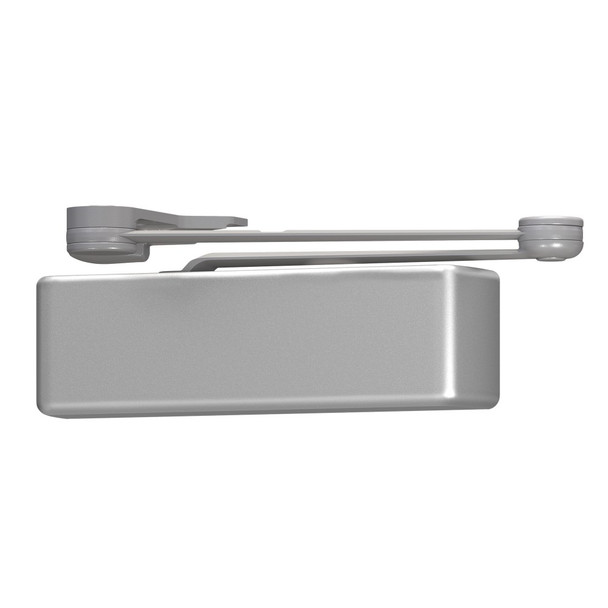

The LCN 4041DEL-SCUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It features a reinforced pinion with 3/4" journal diameter, 5/8" wide bearing, and V-shield seal technology for superior durability and 20% extended seal life. Ideal for facilities managers and building owners who demand maximum performance and minimal maintenance.
This non-handed closer adjusts for interior doors to 5'0" and exterior doors to 4'0", mounting on hinge side, top jamb, or parallel arm. It meets ADA requirements and carries UL/cUL listing under ANSI A156.4, Grade 1. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert assistance with finish options, accessibility compliance, and installation guidance.
Specifications
- Brand: LCN
- Model: 4041DEL-SCUSH
- Material: Cast Iron body, Forged Steel arm, Double Heat Treated Steel pinion
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal: V-shield with 20% longer life
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting: Hinge side, top jamb, or parallel arm (with PA bracket)
- Handed: Non-handed (fits right or left swing)
- Fluid: All Weather
- Power Adjust: Fast Power Adjust technology
- Certifications: UL and cUL listed, ANSI A156.4 Grade 1
- ADA Compliant: Yes
- Finishes: Standard/optional powder coat, optional plated finish, optional SRI primer for corrosive environments
- Accessories: Compatible with all 4040 accessories
