Description

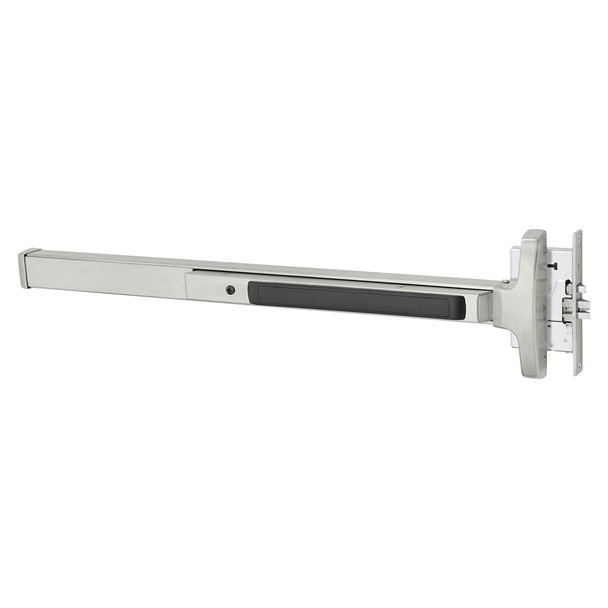

The Sargent 80 Series mortise exit device delivers Grade 1 security for wood and metal doors in high-traffic commercial facilities. Built for durability and low maintenance, this left-hand reverse model features modular construction with few moving parts, making it ideal for building owners and facility managers who need reliable panic hardware that exceeds ANSI/BHMA standards and lasts the life of the building.
Compatible with 1-3/4" thick doors and 4-1/2" minimum stile width, this F-rail model fits doors 33-36" wide without cutting. Sargent offers optional delayed egress, alarmed exit, and electric latch retraction features for specialized applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, configuration, and installation support.
Specifications
- Brand: Sargent
- Model: 55-8375F LHR 32D
- Configuration: Mortise
- Hand: Left-hand Reverse
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Door Width Range (F Rail): 33-36" (84-91cm)
- Standard Door Width: 32"
- Material Compatibility: Wood or metal doors
- Standard: ANSI/BHMA Grade 1
