Description

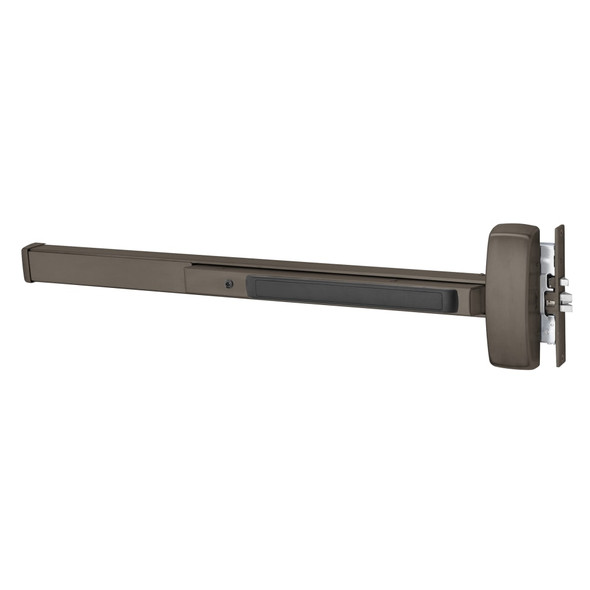

The Sargent 80 Series mortise exit device delivers Grade 1 security and durability for wood or metal doors in commercial buildings. Engineered for left-hand reverse (LHR) applications on 1-3/4" thick doors, this device features modular construction with minimal moving parts, ensuring maintenance-free operation and exceptional reliability throughout the building's lifecycle.
Compatible with standard mortise door preparations; fits E Rail configuration for 24"–32" door widths with no cutting required at 32". Sargent 80 Series devices exceed ANSI/BHMA Grade 1 cycle and strength requirements. Optional features include delayed egress, alarmed exit, and electric latch retraction. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility and customization.
Specifications
- Brand: Sargent
- Model: 55-8976G
- Configuration: Mortise
- Handing: Left-Hand Reverse (LHR)
- Finish: 32D (Stainless Steel)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Configuration: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- Standard Width (No Cutting): 32"
- Grade: ANSI/BHMA Grade 1
