Description

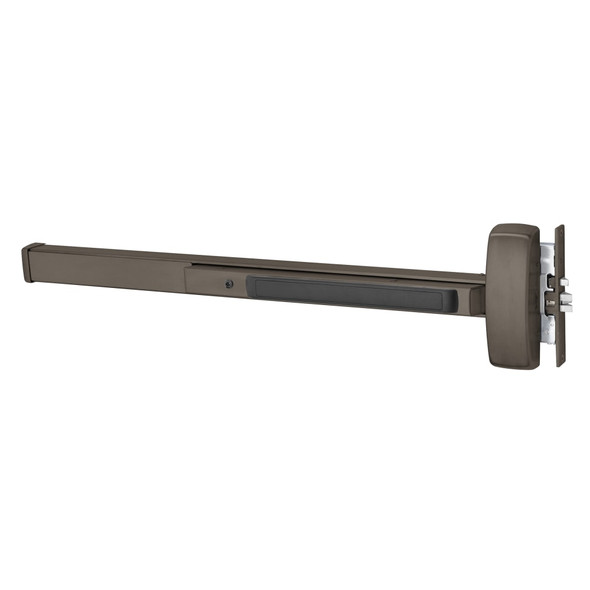

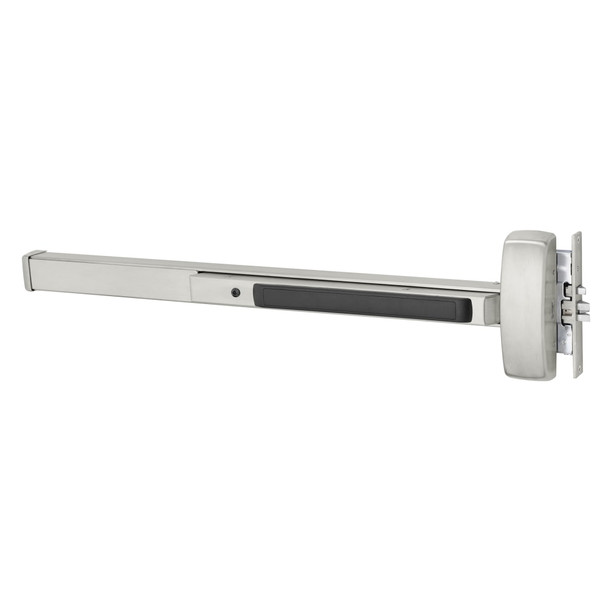

The Sargent 80 Series mortise exit device delivers Grade 1 security and durability for wood or metal doors in commercial facilities. Built for left-hand reverse (LHR) applications, this mortise model suits doors 1-3/4" thick with a 4-1/2" minimum stile. Its modular design minimizes maintenance while providing reliable egress control that meets or exceeds ANSI/BHMA standards.
The F-rail configuration fits door widths 33" to 36", with 36" doors requiring no cutting. Options include delayed egress, alarmed exit, and electric latch retraction for specialized needs. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for compatibility verification, rail sizing, and expert installation guidance.
Specifications
- Series: 80 Series
- Model: 55-8973F
- Orientation: LHR (Left-Hand Reverse)
- Configuration: Mortise
- Door Types: Wood or metal
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Type: F Rail
- Door Width Range: 33" to 36" (84cm to 91cm)
- Standard Door Width: 36" (no cutting required)
- Certification: Exceeds ANSI/BHMA Grade 1
