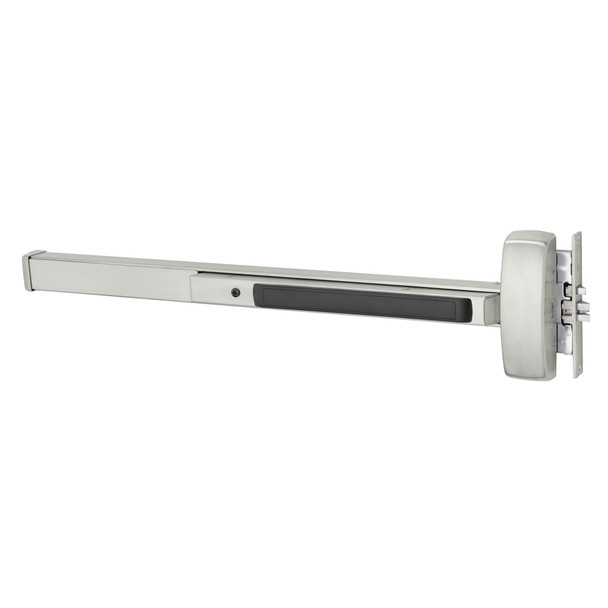

Sargent 80 Series 55-8974G LHR Mortise Exit Device

Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 48" Device, Device to Accept Electrified Trim Function, Request to Exit Switch, Hex Key Dogging, Satin Stainless Steel Finish, Left Hand Reverse

MSRP: $4,079.00
$2,544.43
You save $1,534.57
SKU:
55-8974G LHR 32D
In Stock & Ready To Ship!
Current Stock:Only left:
Ask Questions

Description

The Sargent 80 Series mortise exit device delivers Grade 1 security and durability for wood or metal doors in high-traffic commercial facilities. Built with modular construction and minimal moving parts, this left-hand reverse unit requires virtually no maintenance while exceeding ANSI/BHMA standards for cycle strength and reliability.

Compatible with 1-3/4" standard doors and stile widths 24" to 48" (order 31-option for thicker doors). Available rail options accommodate various door widths without cutting. Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for keying, configuration and installation guidance tailored to your facility.

Specifications

  • Series: 80 Series
  • Model: 55-8974G LHR 32D
  • Configuration: Mortise
  • Hand: Left-Hand Reverse
  • Door Types: Wood or metal
  • Standard Door Thickness: 1-3/4" (44mm)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
  • Standard: ANSI/BHMA Grade 1
  • Options: Delayed egress, alarmed exit, electric latch retraction
