Description

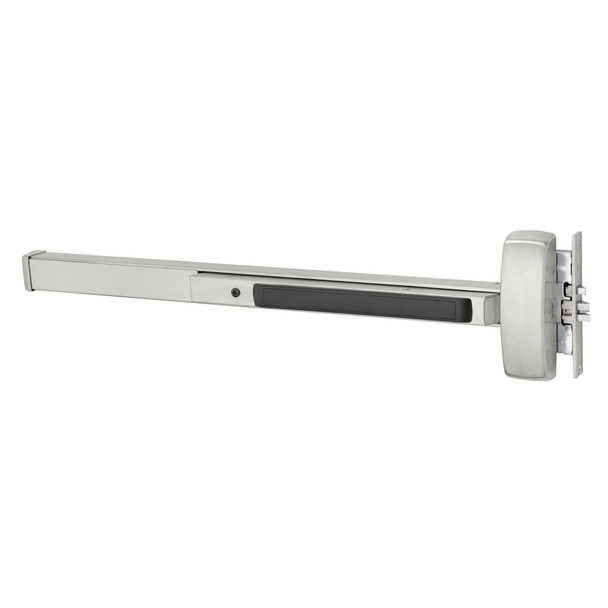

The Sargent 80 Series mortise exit device delivers Grade 1 rated security for wood and metal doors in high-traffic commercial facilities. Built for durability with modular construction and minimal moving parts, this left-hand reverse (LHR) unit handles 32-inch doors without cutting and exceeds ANSI/BHMA strength and cycle requirements for long-term reliability.
Compatible with 1-3/4-inch standard doors and thicker applications, the 55-8913F installs into mortise prep. Optional features include delayed egress, alarm integration, and electric latch retraction for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert spec guidance and fast shipping. Contact sales@edlocks.com or 1-877-207-6067 for sizing, rail options, and project support.
Specifications
- Model: 55-8913F LHR 32D
- Series: 80 Series Mortise
- Door Thickness: 1-3/4 inches (44mm) standard
- Door Width: 24-32 inches (E Rail); no cutting required for 32 inches
- Minimum Stile Width: 4-1/2 inches (114mm)
- Door Type: Wood or metal
- Hand/Opening: Left-hand reverse (LHR)
- Grade: ANSI/BHMA Grade 1
- Configuration: Mortise exit device
- Optional Features: Delayed egress, alarmed, electric latch retraction
