Description

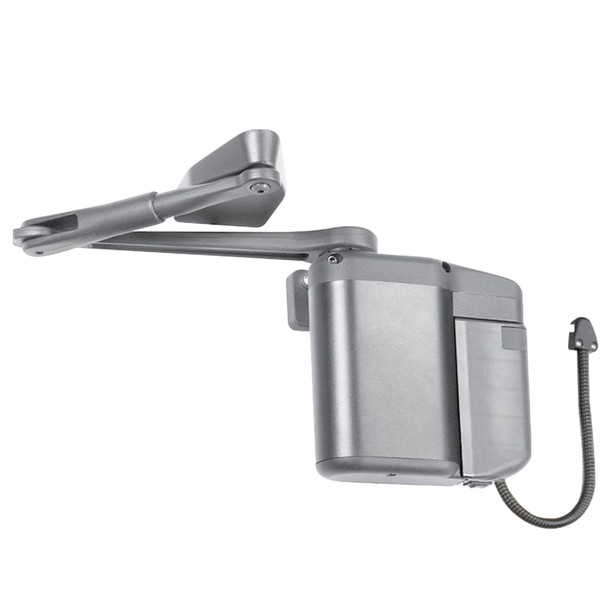

The Norton 5845XNPB 689 ADAEZ is a regenerative power door operator certified by GreenCircle to reduce energy consumption by up to 100 percent compared to standard operators. Ideal for commercial and institutional facilities, this operator simplifies ADA compliance while accommodating doors up to 48 inches wide and 250 pounds. Its innovative regenerative drive charges the on-board battery when manually opened, eliminating the need for external power.
The 5845XNPB 689 fits tight spaces and installs easily with adjustable opening, closing, and hold-open functions that automatically tune to meet ANSI A156.19 and A117.1 standards. It includes two wireless push-button transmitters, on-board diagnostics, and a two-year warranty. As an authorized Norton dealer, E.D. Locks provides expert installation guidance and support at 1-877-207-6067 or sales@edlocks.com to ensure your door operator meets all code requirements.
Specifications
- Maximum door width: 48 inches
- Maximum door weight: 250 pounds
- Operating temperature range: Above -40 degrees F
- Cycle rating: 1,000,000 automatic cycles tested
- Transmitter type: Two wireless stainless steel push buttons (1-3/4" x 4-3/4")
- Output shaft: Triangular hardened steel with two-piece tapered coupling
- Arm material: Heavy duty cast aluminum shock-absorbing
- Warranty: Two years
- Compliance: ANSI A156.19, ANSI A117.1, ADA requirements
