Description

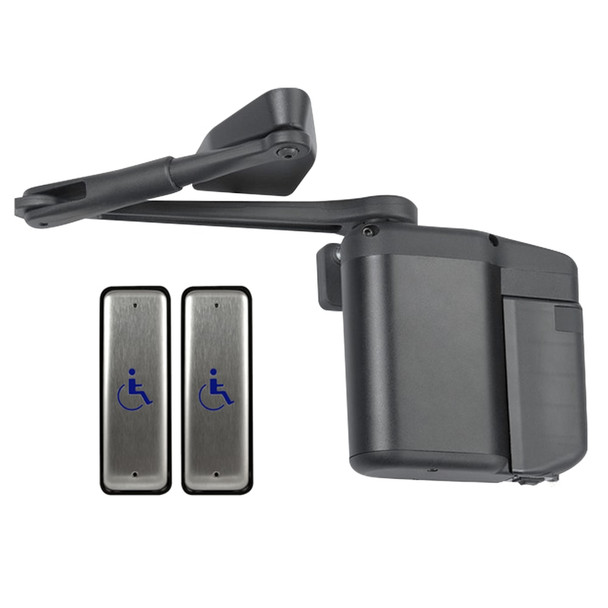

The Norton 5831xNPB 693T ADAEZ is a regenerative power door operator engineered for commercial and ADA-compliant applications. It solves accessibility and energy concerns by automatically adjusting opening and closing forces to meet ANSI A156.19 and ADA standards, while its regenerative drive system charges the battery when doors are opened manually, eliminating dependence on external power.
This operator fits doors up to 48 inches wide and 250 pounds, with wireless push-button transmitters included. Wireless and plug-in versions are available; installation requires proper positioning per ANSI guidelines. As an authorized Norton dealer, E.D. Locks provides expert configuration support and warranty assistance. Contact sales@edlocks.com or call 1-877-207-6067 for help selecting the right setup for your building's door systems.
Specifications
- Maximum door width: 48 inches
- Maximum door weight: 250 pounds
- Wireless transmitters: Two stainless steel, 1-3/4 inch x 4-3/4 inch jamb-mounted push buttons
- Cycle rating: 1,000,000 automatic cycles
- Operating temperature: -40 degrees F and above
- Warranty: Two years
- Compliance: ANSI A156.19, ANSI 117.1, ADA
- Output shaft: Triangular hardened steel with two-piece tapered coupling
- Arm construction: Heavy-duty cast aluminum shock-absorbing
