Description

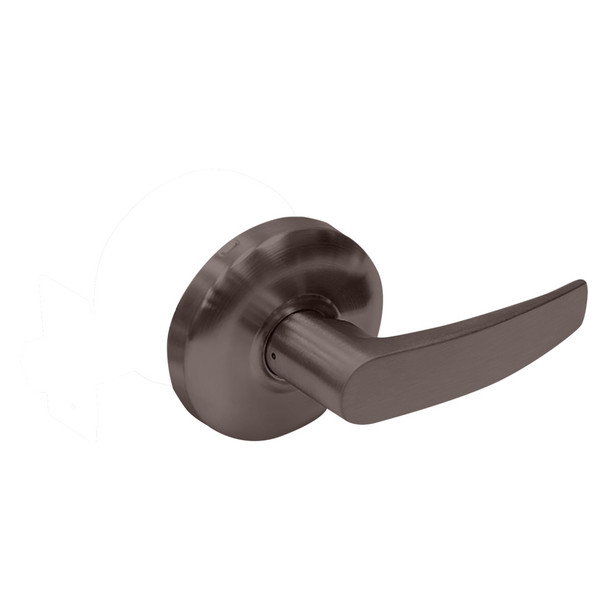

The Sargent 6500 Series 65U93 KB 10B is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors, it provides reliable access control and security for facilities requiring durable, no-nonsense hardware that meets industry standards.
This lock fits doors 1-3/8" to 1-3/4" thick with a standard 2-3/4" backset (2-3/8" optional). It features a universal hand design, brass 1/2" throw latch, and comes keyed with two nickel silver keys. For proper installation and keying assistance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4"
- Backset: 2-3/4" standard; 2-3/8" optional
- Housing: Steel, zinc dichromate finish
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two, nickel silver
- Hand: Universal, not handed
- Strike Options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
- Finish: 10B
- Standard: ANSI A156.2 Grade 2, ANSI A115.2 door prep
