Description

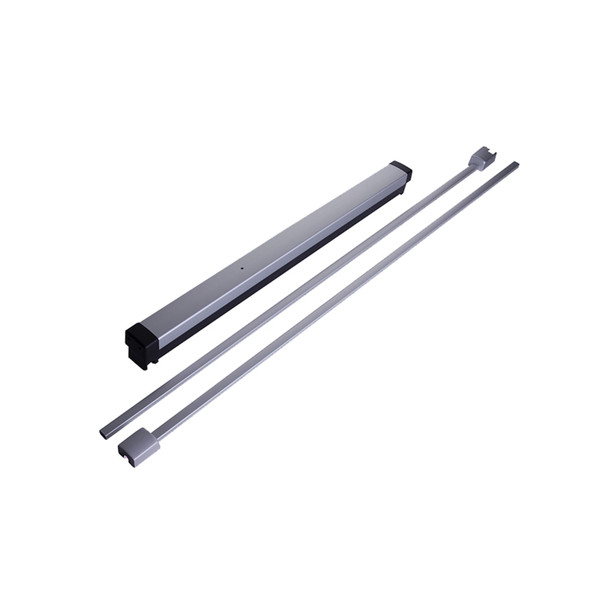

The Adams Rite 8211LR-48 is an electric latch retraction exit device designed for narrow stile aluminum doors. This SVR exit device solves life safety code compliance for commercial buildings while providing reliable push-to-exit functionality. The extruded aluminum pushbar is available in multiple finishes and suits standard door thicknesses from 1-3/4" to 2-1/4".
The 48" pushbar fits doors up to 8 feet tall with bar height adjustable 30" to 44". The device is non-handed with field-reversible lever entry trim, simplifying installation. As an authorized Adams Rite dealer, E.D. Locks offers expert guidance on cylinder compatibility, dogging options, and tall door kit requirements. Contact sales@edlocks.com or call 1-877-207-6067 for application support and fast shipping.
Specifications
- Brand: Adams Rite
- Model: 8211LR-48
- Pushbar Length: 48 inches
- Bar Height Adjustment: 30" to 44"
- Maximum Door Height: 8 feet (10 feet with 8055 Tall Door Kit)
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" extended, 1-15/16" dogged
- Latch Function: Electric Latch Retraction
- Material: Extruded aluminum, anodized
- Handing: Non-handed, field-reversible entry trim
- Dogging: Standard hex key dogging (cylinder and electric options available separately)
- Fasteners: Self-tapping screws (sex bolt kits available separately)
- Cylinder Compatibility: Standard rim cylinders (entry trim accepts mortise cylinders with MS cam, 1" to 1-1/4" length)
- Warranty: Five year limited
