Description

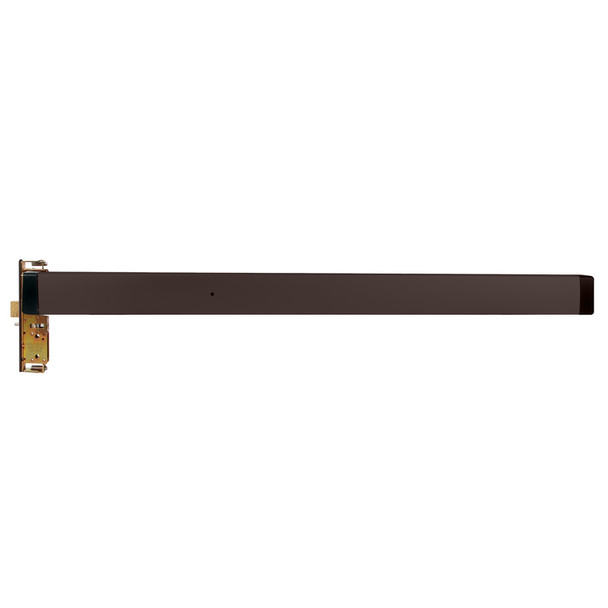

The Adams Rite 8420LR is a life-safety exit device engineered for narrow stile aluminum doors requiring mortise locking. The 8400 Series suits standard 1-3/4" to 2-1/4" thick doors up to 8 feet tall, with an extruded aluminum pushbar available in multiple finishes. Non-handed design and field-reversible lever trim simplify installation and future adjustments.
This 48" model fits openings up to 48" and adjusts vertically from 30" to 44". Compatible with standard rim cylinders and optional mortise cylinders with MS cam. As an authorized Adams Rite dealer, E.D. Locks provides expert specification assistance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for keying options, finish selection, and dogging configuration guidance.
Specifications
- Brand: Adams Rite
- Model: 8420LR-48236
- Pushbar Length: 48 inches
- Bar Height Adjustment: 30 inches to 44 inches
- Door Thickness: 1-3/4 inches to 2-1/4 inches
- Maximum Door Height: 8 feet (with bar height 40-44 inches)
- Minimum Stile Width: 3-3/4 inches
- Projection: 2-15/16 inches (extended), 1-15/16 inches (dogged)
- Material: Extruded aluminum pushbar
- Handing: Non-handed
- Cylinder Compatibility: Standard rim cylinders or mortise cylinders with MS cam (1 inch to 1-1/4 inch length)
- Dogging: Hex key standard; optional cylinder or electric dogging available
- Warranty: Five year limited
