Description

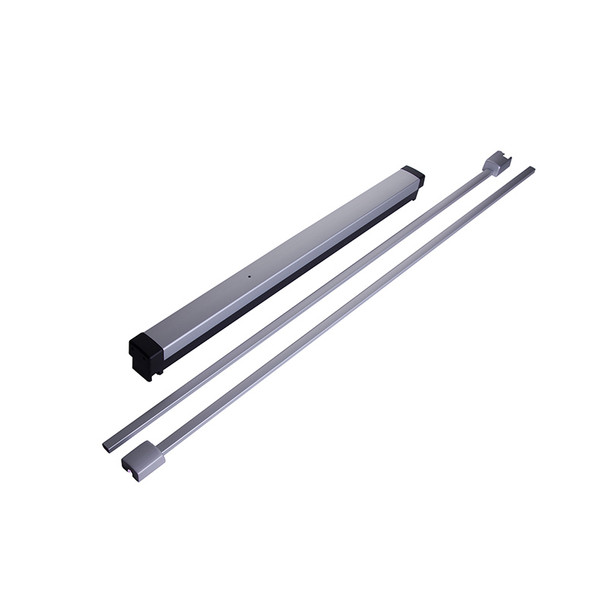

The Adams Rite 8211SE48 is a silent electric latch retraction exit device designed for narrow stile aluminum doors. Built for high-traffic commercial entries, it combines reliable emergency egress with quiet operation, eliminating noisy mechanical latches while maintaining code compliance and security.
This non-handed device fits standard 1 3/4" to 2 1/4" door thicknesses and doors up to 8 feet tall. The extruded aluminum pushbar is field-reversible and available in multiple finishes. For expert selection, compatibility verification, and installation guidance specific to your door configuration, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Adams Rite
- Model: 8211SE48
- Pushbar Length: 48 inches
- Bar Height Adjustment: 30 to 44 inches
- Maximum Door Height: 8 feet (10 feet with optional 8055 Tall Door Kit)
- Door Thickness: 1 3/4 to 2 1/4 inches
- Minimum Stile Width: 3 3/4 inches
- Projection: 2 15/16 inches extended, 1 15/16 inches dogged
- Material: Extruded aluminum pushbar
- Handing: Non-handed
- Door Type: Narrow stile aluminum
- Function: Silent electric latch retraction with standard hex key dogging
- Warranty: Five year limited
- Cylinder Compatibility: Standard rim cylinder (ANSI/BHMA Function 03) or mortise cylinder with MS cam (3080 Entry Trim, Functions 08, 09)
