Description

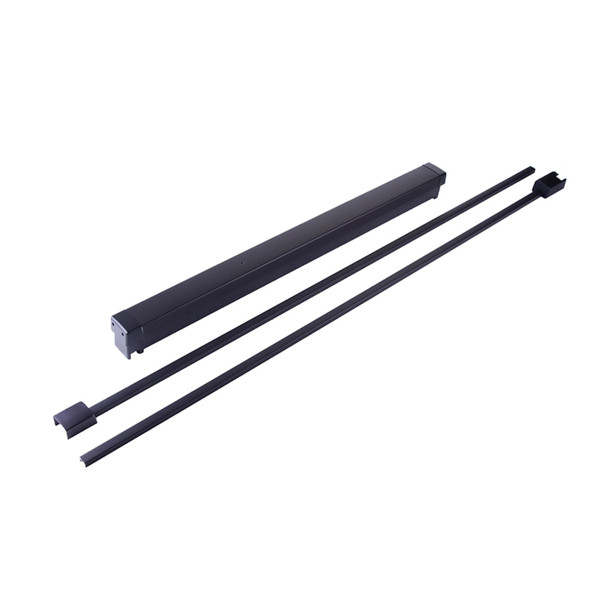

The Adams Rite 8222MLR-36 is a Grade 1 narrow stile surface vertical rod exit device engineered for aluminum door applications. Featuring motor latch retraction and electric dogging, it delivers reliable emergency egress for high-traffic commercial facilities, hospitals, and institutional buildings that require ADA-compliant, code-approved exit solutions.
Compatible with standard 1-3/4" to 2-1/4" door thickness and aluminum stiles 3-3/4" minimum width, this non-handed device installs on doors up to 8 feet tall with optional tall door kits for 10-foot applications. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on specification, handing, and integration with your existing hardware. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and fast shipping.
Specifications
- Brand: Adams Rite
- Model: 8222MLR-36
- Type: Grade 1 Narrow Stile Surface Vertical Rod Exit Device
- Function: Motor Latch Retraction, Electric Dogging
- Pushbar Length: 36 inches
- Finish: Dark Bronze Anodized Aluminum
- Material: Extruded Aluminum Pushbar
- Handing: Non-handed, Field Reversible
- Bar Height Adjustment: 30 inches to 44 inches
- Door Height Capacity: Up to 8 feet (with optional 8055 or 3055 Tall Door Kit for 10 feet)
- Door Thickness: 1-3/4 inches standard, up to 2-1/4 inches
- Minimum Stile Width: 3-3/4 inches
- Projection: 2-15/16 inches fully projected, 1-15/16 inches dogged
- Warranty: Five year limited
