Description

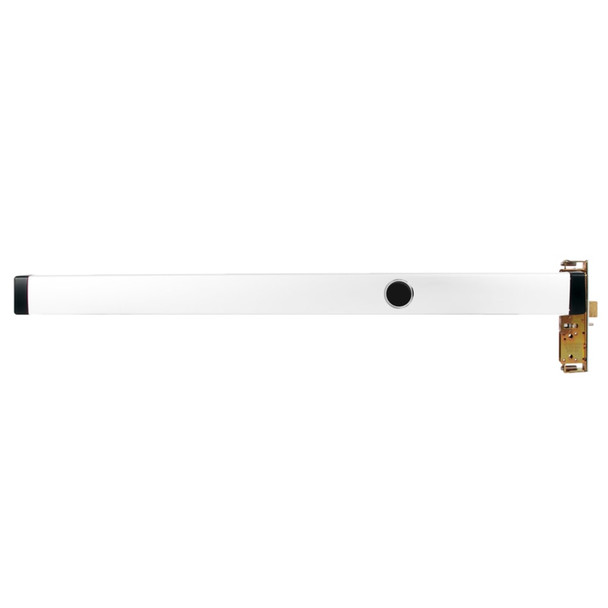

The Adams Rite 8414C-37142 is a mortise exit device designed for narrow stile aluminum doors up to 42 inches wide. Built for right-hand reverse (RHR) applications, this pushbar device features cylinder dogging and suits standard 1-3/4" to 2-1/4" door thickness. Ideal for commercial and institutional facilities requiring reliable emergency egress and flexible dogging options.
This non-handed device is field-reversible and fits doors up to 8 feet tall with bar height adjusted 30-44 inches. The extruded aluminum pushbar is available in multiple finishes. For compatibility questions, custom configurations, or to arrange expert guidance on installation and keying, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Adams Rite
- Model: 8414C-37142
- Device Type: Mortise Exit Device
- Backset: 1-1/8"
- Application: Narrow Stile Aluminum Doors
- Handing: RHR (Right-Hand Reverse)
- Pushbar Length: 42" standard, field cuttable to smaller openings
- Bar Height Range: 30" to 44" adjustable
- Maximum Door Height: 8 feet (with bar height 40-44")
- Door Thickness: 1-3/4" standard, up to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" fully extended, 1-15/16" dogged
- Dogging: Cylinder dogging
- Pushbar Material: Extruded aluminum, anodized
- Warranty: Five year limited
