Description

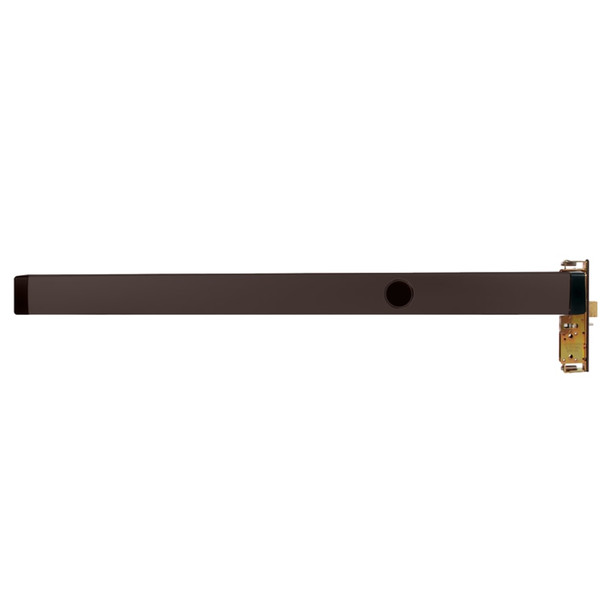

The Adams Rite 8420C is a mortise exit device engineered for narrow stile aluminum doors requiring life-safety compliance. Its extruded aluminum pushbar, available in multiple finishes, provides reliable emergency egress for standard and tall door applications up to 10 feet. Ideal for commercial buildings, schools, and facilities prioritizing code-compliant safety hardware.
This non-handed device fits doors 1 3/4" to 2 1/4" thick and suits stile widths of 3 3/4" minimum. Standard pushbar lengths accommodate 30", 36", 42", and 48" openings; field-cuttable for smaller widths. Choose hex key dogging, optional cylinder dogging, or electric dogging. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification assistance and to verify compatibility with your door assembly.
Specifications
- Brand: Adams Rite
- Model: 8420C-37236
- Device Type: Mortise Exit Device
- Application: Narrow stile aluminum doors
- Handing: Non-handed
- Door Thickness: 1 3/4" to 2 1/4"
- Stile Width: Minimum 3 3/4"
- Pushbar Lengths: 30", 36", 42", 48" (field-cuttable)
- Bar Height Adjustment: 30" to 44"
- Door Height Capacity: Up to 8 ft standard; up to 10 ft with Tall Door Kit
- Pushbar Material: Extruded aluminum, clad or anodized finish
- Projection: 2 15/16" extended, 1 15/16" dogged
- Dogging Options: Hex key, cylinder dogging (8100 Series), electric dogging (3100 and 8100 Series)
- Cylinder Compatibility: Standard rim cylinder or mortise cylinder with MS cam (1" to 1 1/4" length)
- Fasteners: Self-tapping screws standard; optional Sex Bolt Kits available
- Warranty: Five year limited
