Description

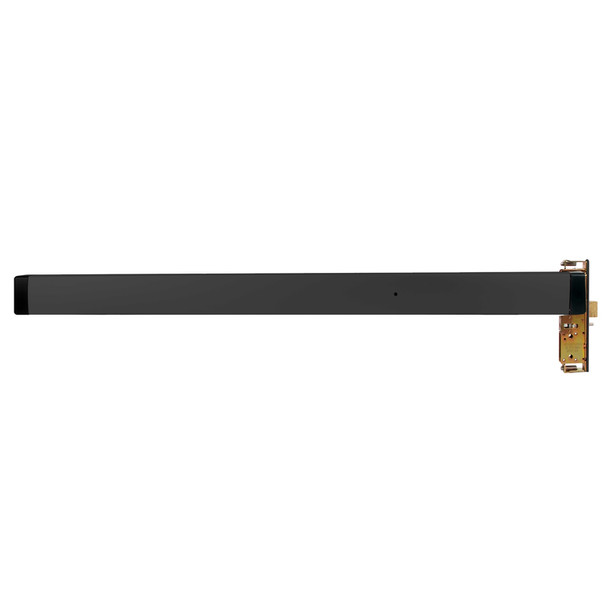

The Adams Rite 8420MLR-37236 is a life-safety exit device engineered for narrow stile aluminum doors requiring mortise locking solutions. Built with an extruded aluminum pushbar in multiple finishes, this non-handed device solves emergency egress compliance for commercial and institutional buildings while maintaining secure access control.
Fits standard 1-3/4" to 2-1/4" door thickness and adjusts from 30" to 44" bar height for doors up to 8 feet (10-foot doors supported with optional tall door kit). Field-reversible lever trim and adjustable pushbar lengths accommodate 30", 36", 42", and 48" openings. As an authorized Adams Rite dealer, E.D. Locks provides expert configuration guidance and five-year warranty support. Contact sales@edlocks.com or 1-877-207-6067 for keying, finish selection, and compatibility assistance.
Specifications
- Brand: Adams Rite
- Model: 8420MLR-37236
- Device Type: Life-Safety Exit Device with Mortise Locking
- Application: Narrow Stile Aluminum Doors
- Handing: Non-Handed
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Bar Height Adjustment: 30" to 44"
- Standard Pushbar Lengths: 30", 36", 42", 48"
- Maximum Door Height: 8 feet (standard), 10 feet (with optional 8055 or 3055 tall door kit)
- Projection: 2-15/16" fully projected, 1-15/16" dogged
- Pushbar Material: Extruded aluminum, clad or anodized finishes
- Dogging: Standard hex key dogging; optional cylinder or electric dogging available for 8100 Series
- Cylinder Compatibility: Standard rim cylinder or mortise cylinder with MS cam (1" to 1-1/4" length)
- Fasteners: Self-tapping screws (optional sex bolt kits available)
- Warranty: Five-year limited
