Description

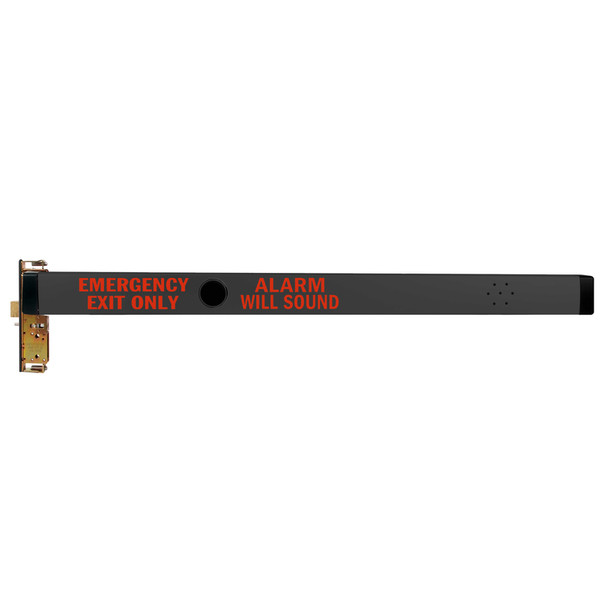

The Adams Rite 8430A is a mortise exit device designed for narrow stile aluminum doors on commercial emergency exits. This left-hand reverse (LHR) model features a 36" pushbar, battery-operated alarm function, and black finish. It solves the need for ADA-compliant, reliable emergency egress on moderate-height doors while accommodating standard 1 3/4" door thickness.
The 8430A fits doors up to 8 ft tall with bar height adjusted to 40-44 inches; taller door kits are available separately. It accepts standard rim cylinders and field-reversible lever entry trim for flexible installation. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on keying, compatibility, and tall-door configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for project support.
Specifications
- Brand: Adams Rite
- Model: 8430A-38336B
- Device Type: Mortise exit device with battery-operated alarm
- Pushbar Length: 36"
- Backset: 1 1/8"
- Handing: Left-hand reverse (LHR)
- Material: Extruded aluminum pushbar
- Finish: Black
- Door Thickness: Suits 1 3/4" standard, up to 2 1/4"
- Maximum Door Height: 8 ft (with bar height 40-44"), up to 10 ft with optional tall door kit
- Bar Height Adjustment: 30" to 44"
- Stile Width Minimum: 3 3/4"
- Projection: 2 15/16" fully projected, 1 15/16" when dogged
- Cylinder Compatibility: Accepts standard rim cylinders
- Warranty: Five year limited
