Description

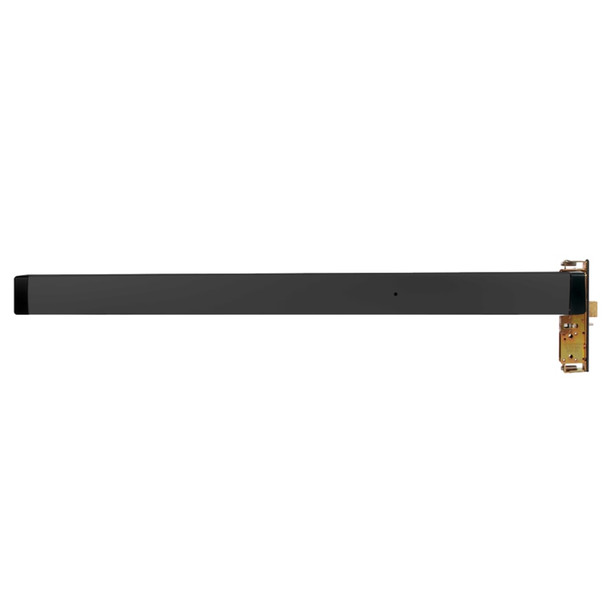

The Adams Rite 8430MLR is a motorized mortise exit device designed for aluminum doors up to 36 inches wide. Built for high-traffic commercial entrances, it combines reliable latch retraction with durable extruded aluminum construction, solving the need for hands-free egress control on secured doorways.
This device fits standard 1-3/4" to 2-1/4" door thickness and includes a 1-1/8" backset, right-hand reverse (RHR) configuration in black anodized finish. As an authorized Adams Rite dealer, E.D. Locks offers expert guidance on installation, dogging options, and cylinder compatibility. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for configuration questions.
Specifications
- Brand: Adams Rite
- Model: 8430MLR-37336
- Device Type: Mortise Exit Device with Motorized Latch Retraction
- Door Type: Aluminum
- Pushbar Length: 36 inches
- Backset: 1-1/8"
- Handing: RHR (Right Hand Reverse)
- Finish: Black Anodized Aluminum
- Door Thickness: Fits 1-3/4" to 2-1/4"
- Door Height: Standard up to 8 ft (Tall Door Kit available separately)
- Bar Height Range: 30" to 44"
- Projection: 2-15/16" fully projected, 1-15/16" when dogged
- Stile Width Minimum: 3-3/4"
- Warranty: Five year limited
