Description

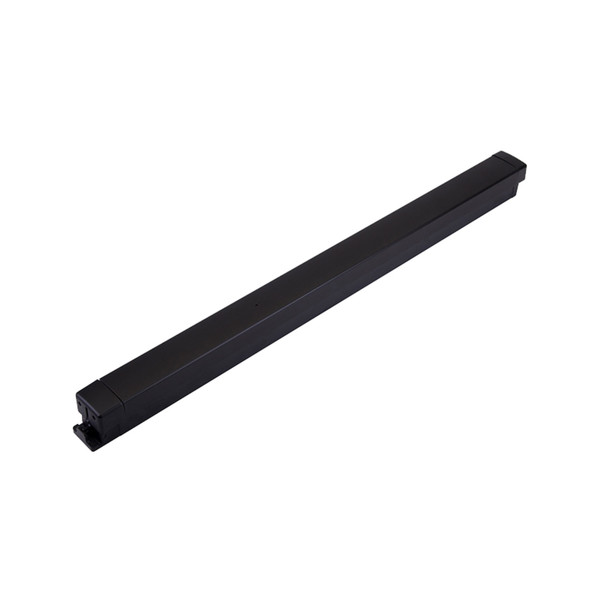

The Adams Rite 8702-48 is a rim exit device designed for hollow metal and wood doors up to 8 feet tall. Built with an extruded aluminum pushbar and available in dark bronze finish, this non-handed device suits standard 1.75-inch to 2.25-inch door thickness and fits openings from 30 to 48 inches wide. It solves emergency egress requirements for commercial and institutional facilities.
The 8702-48 adjusts from 30 to 44 inches in bar height and includes standard hex-key dogging, with optional cylinder dogging and electric dogging available for enhanced control. It accepts standard rim cylinders and fits doors up to 10 feet with the optional 8055 Tall Door Kit. As an authorized Adams Rite dealer, E.D. Locks provides expert installation guidance and product support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Adams Rite
- Model: 8702-48
- Pushbar Length: 48 inches
- Bar Height Adjustment: 30 to 44 inches
- Door Height: Standard fits up to 8 feet
- Door Thickness: 1.75 to 2.25 inches
- Minimum Stile Width: 3.75 inches
- Projection: 2.9375 inches (fully projected), 1.9375 inches (dogged)
- Finish: Dark Bronze
- Handing: Non-handed
- Material: Extruded aluminum pushbar
- Dogging: Standard hex key; optional cylinder or electric dogging
- Cylinder Compatibility: Standard rim cylinders
- Warranty: Five year limited
