Description

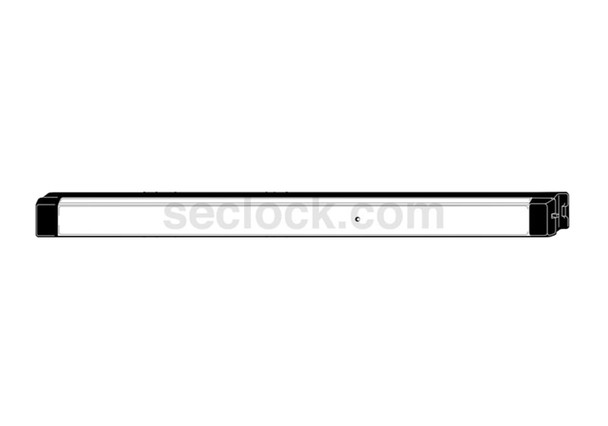

The Adams Rite 8800-42 is a rim exit device designed for narrow stile aluminum doors up to 42" wide. Built for commercial applications requiring reliable emergency egress, this non-handed device features an extruded aluminum pushbar finished in bright brass. It suits standard 1-3/4" to 2-1/4" door thickness and fits doors up to 8 ft. tall with adjustable bar height from 30" to 44".
The 8800-42 accepts standard rim cylinders and pairs with optional entry trim (sold separately). Installation uses self-tapping screws on aluminum stile doors; hex key dogging is standard, with optional cylinder or electric dogging available. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on specs, keying, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for detailed technical support.
Specifications
- Brand: Adams Rite
- Model: 8800-42
- Finish: Bright Brass
- Pushbar Length: 42" (field cuttable)
- Bar Height Range: 30" to 44" adjustable
- Door Height: Up to 8 ft. (10 ft. with optional 8055 Tall Door Kit)
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" fully extended, 1-15/16" dogged
- Handing: Non-handed, field reversible lever trim
- Dogging: Standard hex key (cylinder or electric dogging available separately)
- Fasteners: Self-tapping screws (optional Sex Bolt Kits available)
- Cylinder Compatibility: Standard rim cylinders
- Warranty: Five year limited
