Description

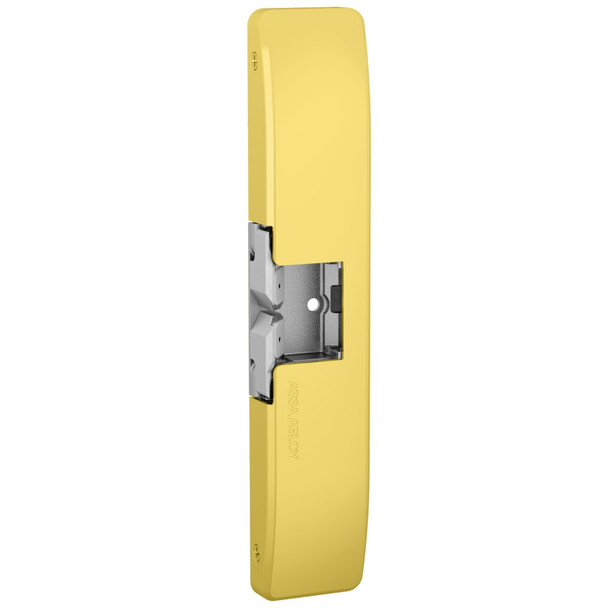

The HES 9500 is a surface-mounted electric strike engineered for rim exit devices with 3/4" Pullman latches. This Grade 1 strike solves costly frame cutting by mounting directly to the door frame surface, making it ideal for retrofit applications in fire-rated openings where minimal installation disruption matters.
The 9500 is field-selectable for fail-secure or fail-safe operation and supports both 12 and 24VDC inputs. It complies with NFPA 80-07 fire-door retrofit guidelines and carries UL 10C 3-hour fire rating. For expert assistance selecting the right voltage, keying, or installation support, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Fire Rating: UL 10C, 3 hour (fail secure)
- Housing: 3/4" thick stainless steel
- Latch Compatibility: 3/4" Pullman latch
- Voltage: Field-selectable 12 or 24VDC
- Operation: Field-selectable fail-secure or fail-safe
- Installation: Surface-mounted, no frame cutting required
- Standards: ANSI/BHMA A156.31 Grade 1, UL 1034 burglary-resistant, UL 294 (6th Edition)
- Fire Compliance: NFPA 80-07, NFPA-252, ASTM-E152, CAN4-S104 (ULC-S104), California Fire Marshal listed
- Additional: RoHS compliant, outdoor-suitable, patented design
