Description

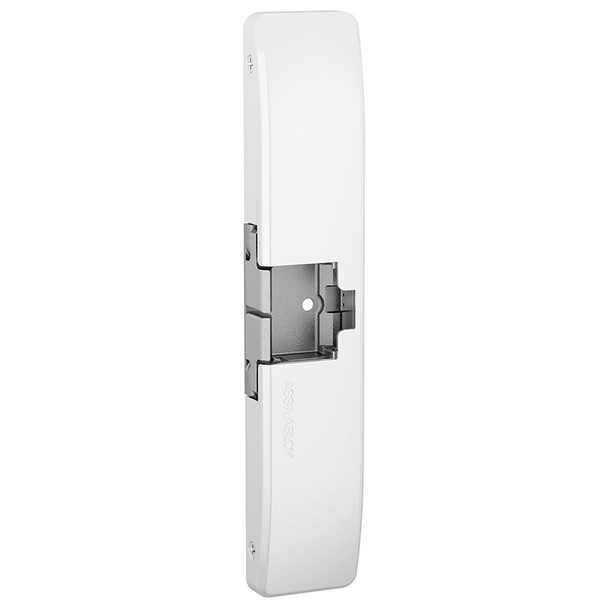

The HES 9700-629-LBM is a heavy-duty surface-mounted electric strike engineered for high-security applications. Designed for Corbin Russwin SecureBolt and Yale SquareBolt exit devices, it solves the installation challenge of retrofit projects by requiring no frame cutting. Its 3/4" stainless steel housing completely encase all components, making it ideal for commercial doors, fire-rated openings, and outdoor applications where durability matters.
This strike is field-selectable for fail-secure or fail-safe operation and supports both 12 and 24VDC power, ensuring flexibility during installation. UL-listed to ANSI 250.13, NFPA-252 fire-door compliant, UL 1034 burglary-resistant, and Florida Building Code approved. As an authorized HES dealer, E.D. Locks provides expert guidance on compatibility and configuration. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for technical support.
Specifications
- Housing: 3/4" thick stainless steel
- Mounting: Surface mounted
- Compatible devices: Corbin Russwin SecureBolt, Yale SquareBolt
- Operation modes: Field-selectable fail-secure or fail-safe
- Voltage: 12 or 24VDC (field-selectable)
- UL listings: ANSI 250.13 Severe Windstorm, NFPA-252, ASTM-E152, UL 1034 burglary-resistant, UL 10C fire-rated (3-hour, fail-secure only), UL 294 (6th Edition)
- Standards: CAN4-S104 (ULC-S104), ANSI/BHMA A156.31 Grade 1, RoHS compliant
- Approvals: Florida Building Code (#14307), California Fire Marshall listed
- Patents: 6,390,520, 6,392,520, 8,454,520
