Description

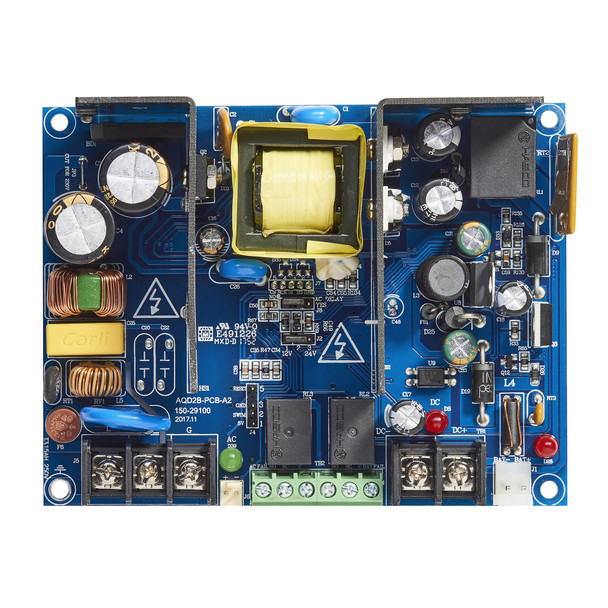

The Securitron AQD2-4F1 is a dual-voltage switching power supply with integrated battery charger, designed for access control systems and electrified door hardware installations. It solves the challenge of reliable power delivery and battery backup for security applications requiring supervised, protected outputs with automatic charging and fault detection.
This unit is compatible with sealed gel, AGM, or wet lead acid batteries and features eight independently controlled, power-limited outputs. As an authorized Securitron dealer, E.D. Locks provides expert configuration assistance and warranty support. Contact our team at sales@edlocks.com or 1-877-207-6067 for application guidance and to ensure proper setup for your security infrastructure.
Specifications
- Dual-voltage field selectable: 12 VDC (2A max) or 24 VDC (1.5A max)
- Continuous output: 2.8A at 12 VDC / 1.4A at 24 VDC
- Universal input: 90-240 VAC
- Up to eight independently controlled power-limited outputs
- Integrated battery charger with fast reserve charging
- Supports up to two sealed gel, AGM, or wet lead acid batteries
- Thermal shutdown protection with auto restart
- Low battery disconnect to prevent deep discharge
- Circuit breaker protection for overcurrent and reverse battery faults
- LED indicators and Form C contacts for supervision
- Cabinet dimensions: 14" x 9" x 3.5"
- Operating temperature: -4 to +104°F (-20 to +40°C)
- MagnaCare lifetime replacement warranty (no fault)
- Class 2 power-limited outputs
