Description

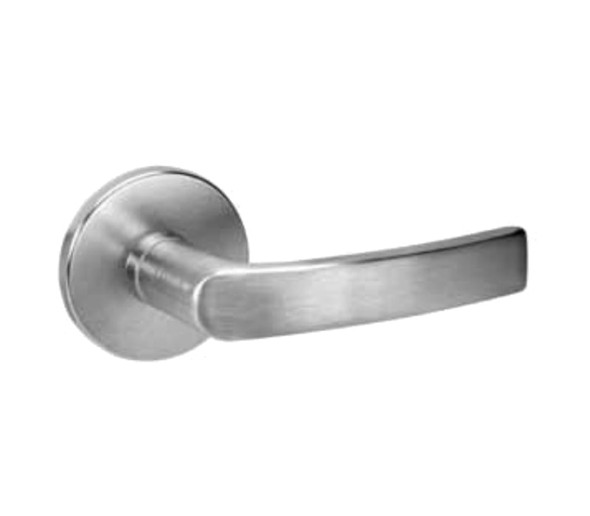

The Yale 8800 Series mortise lock trim pack is a Grade 1 commercial door lock built for high-traffic, high-security applications. Its reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible design make installation straightforward while delivering uncompromising strength and durability across offices, retail, hospitality, and institutional facilities.
This trim pack fits standard 1-3/4 inch doors and includes a 6-pin keyed-random cylinder with two keys. All components are field-reversible for flexible handing. As an authorized Yale dealer, E.D. Locks provides expert support, finish selection guidance, and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 with any questions.
Specifications
- ANSI/BHMA Grade 1, Certified A156.13 Series 1000
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inch standard, up to 3-1/4 inch available
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Strikes: 1-1/4 inch curved lip for 1-3/4 inch doors, reversible
- Field reversible handing
- 17 finishes available
- 10 year mechanical warranty
