Description

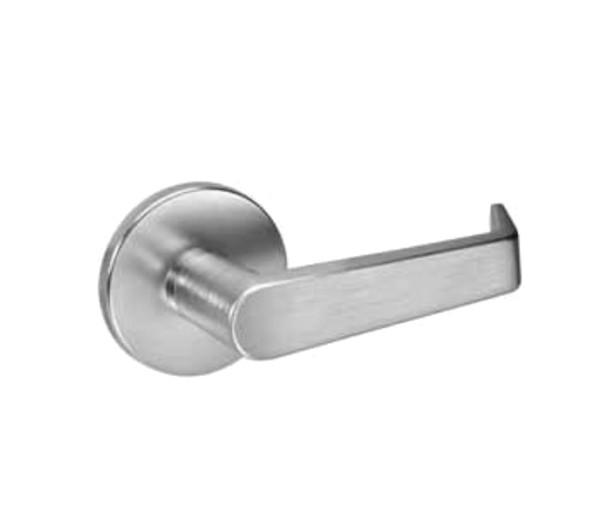

The Yale 8800 Series mortise lock (AUR8828FL) is a commercial-grade entry solution engineered for offices, retail, and institutional buildings that demand ANSI/BHMA Grade 1 durability. Its reinforced stainless steel deadbolt and vandal-resistant trim resist tampering, while field-reversible handing and quick lever installation reduce labor costs and downtime.
This lock fits standard 1-3/4" doors and accepts 6-pin cylinders (keyed random, two keys included). Verify your door thickness, backset requirements, and finish selection before ordering. As an authorized Yale dealer, E.D. Locks provides expert guidance on specification, keying options, and compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Grade 1; UL/cUL fire rated to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Cylinder: 6-pin brass, keyed random, two keys standard
- Strike: 1-1/4" curved lip for 1-3/4" door (reversible)
- Reversibility: Field reversible
- Warranty: 10 years mechanical
