Description

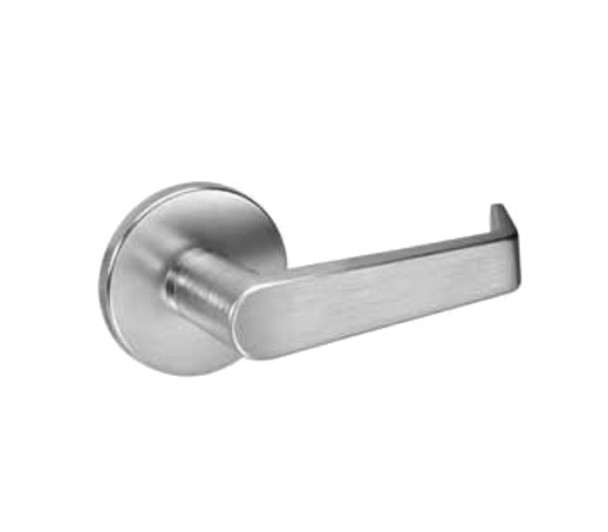

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors requiring heavy-duty performance. Featuring a reinforced stainless steel deadbolt and vandal-resistant trim, this lock is engineered for uncompromising strength in high-traffic applications. Field-reversible handing and quick lever installation make setup straightforward.
Compatible with 1-3/4" standard doors (up to 3-1/4" available to order), this mortise lock includes a 6-pin keyed-random cylinder with two keys and a curved lip strike. UL/cUL fire-rated up to 3 hours and backed by a 10-year mechanical warranty. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish selection and compatibility.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Standard door thickness: 1-3/4" (to 3-1/4" available)
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Strikes: 1-1/4" curved lip reversible (other lengths to order)
- Field reversible handing
- Available in 17 finishes
- 10-year mechanical warranty
